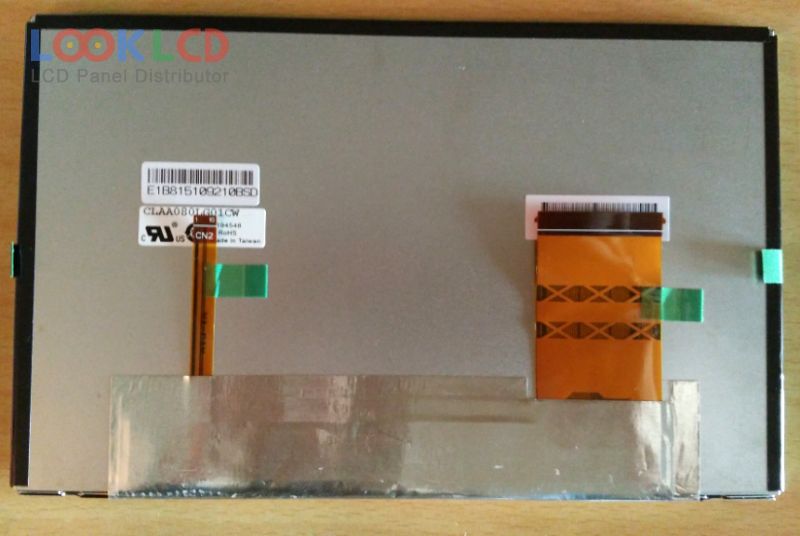

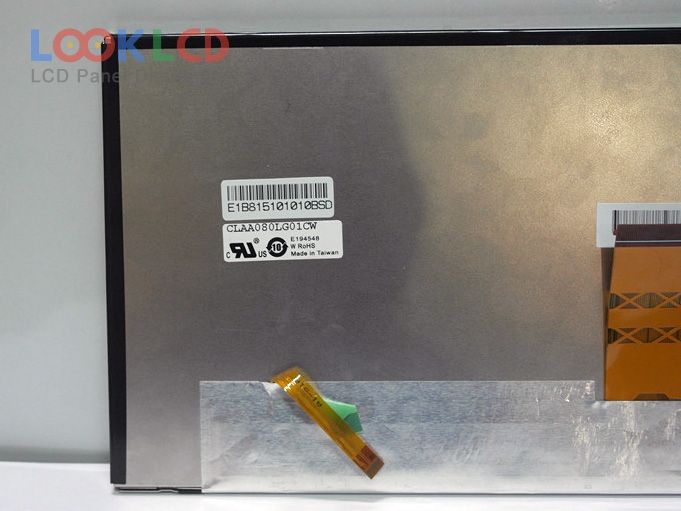

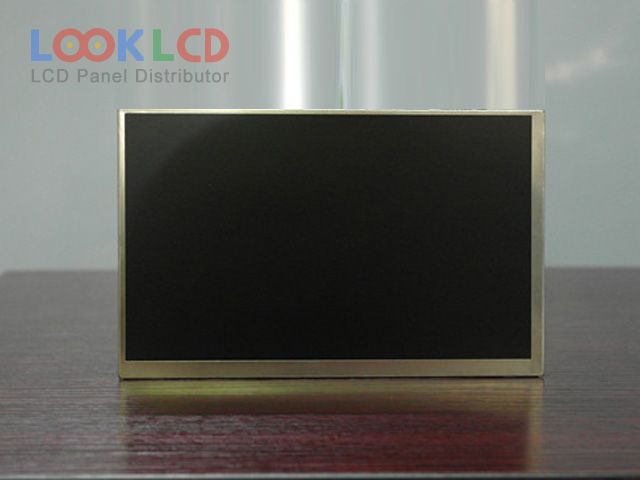

| Part Number | CLAA080LG01CW |
| Mark | CPT |
| Gréisst | 8.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 750 |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | CPT |
| Panel Modell | CLAA080LG01CW |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 175.2×105.12 mm |
| skizzéieren | 186.5×117.2×6.43 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 750 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193171% |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 11S2PWLEDWithout Driver |
| Signal Interface | TTL (1 ch, 6-bit), 60 pins |
| Input Volt | 3.3/12.0/18.0/-6.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Applikatioun | CNS |
