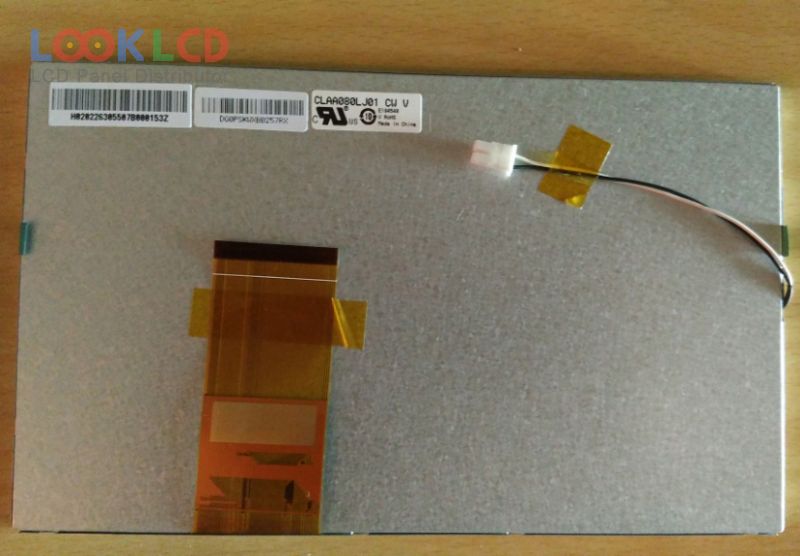

| Part Number | CLAA080LJ01CW |
| Mark | CPT |
| Gréisst | 8.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 500:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | CPT |
| Panel Modell | CLAA080LJ01CW |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 176.64×99.36 mm |
| skizzéieren | 192.8×116.9×7 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S10PWLEDWithout Driver |
| Signal Interface | TTL (1 ch, 6/8-bit), 60 pins |
| Input Volt | 3.3/9.2/18/-6V (Typ.)(DVDD/AVDD/VDDG/VEEG) |
| Applikatioun | CNS |
