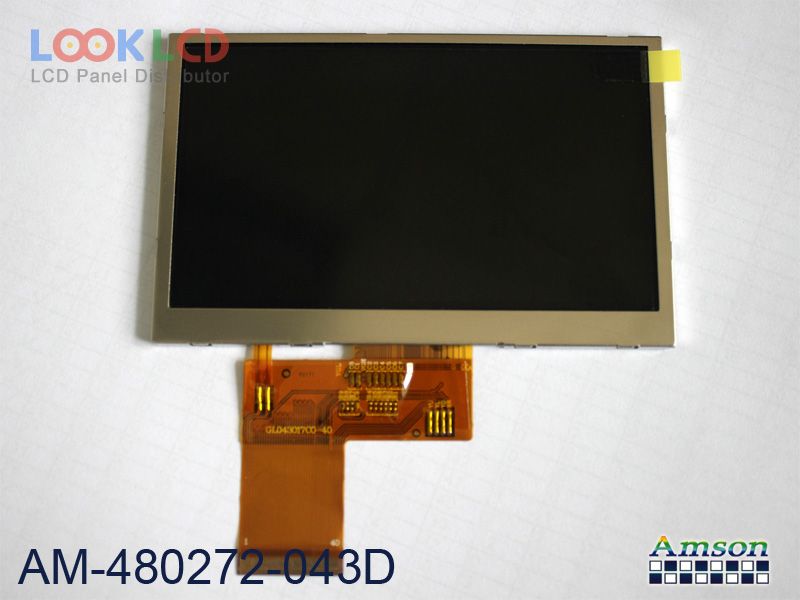

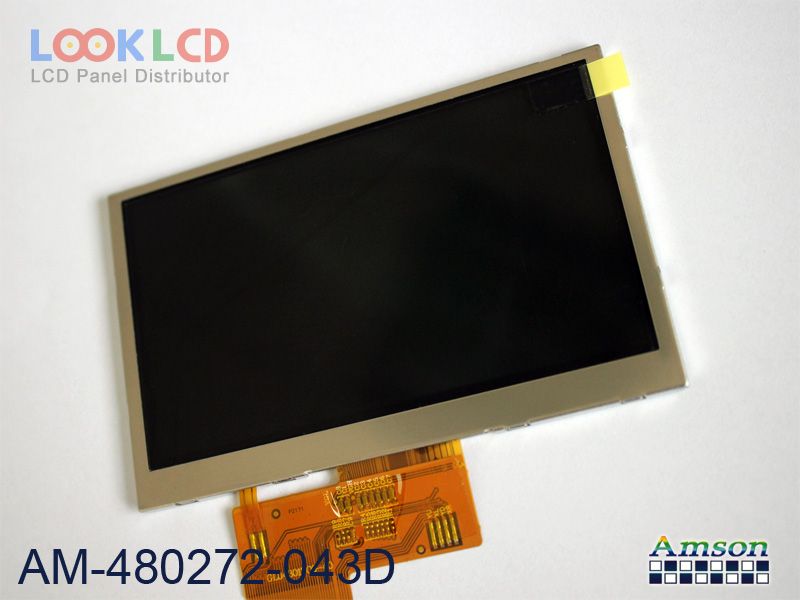

| Part Number | AM-480272-043D |
| Mark | Other |
| Gréisst | 4.3 |
| Applikatioun | CNS |
| Opléisung | 480×272 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | Amson |
| Panel Modell | AM-480272-043D |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 4.3 inch |
| Resolutioun | 480(RGB)×272 , WQVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 95.04×53.856 mm |
| skizzéieren | 105.5×67.2×3.2 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | |
| Vue Wénkel | |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 39 pins |
| Input Volt | 3.0V (Typ.) |
| Applikatioun | CNS |
