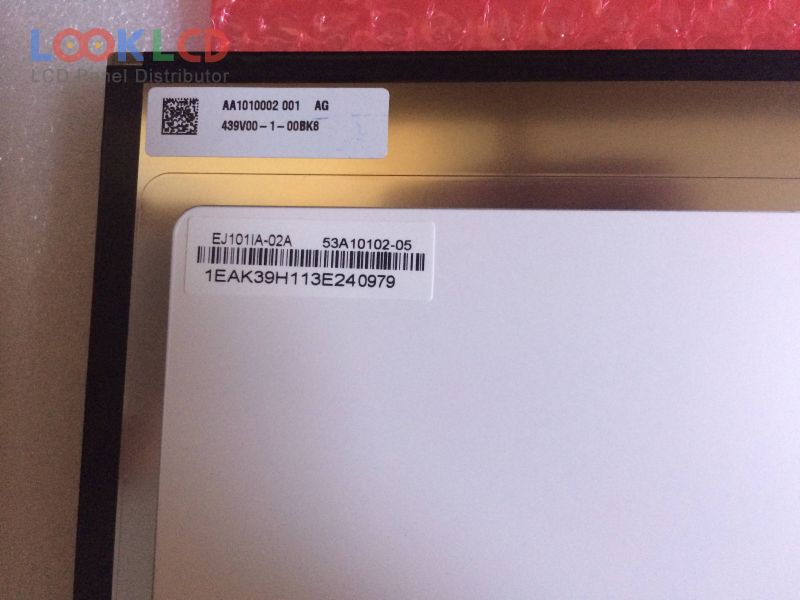

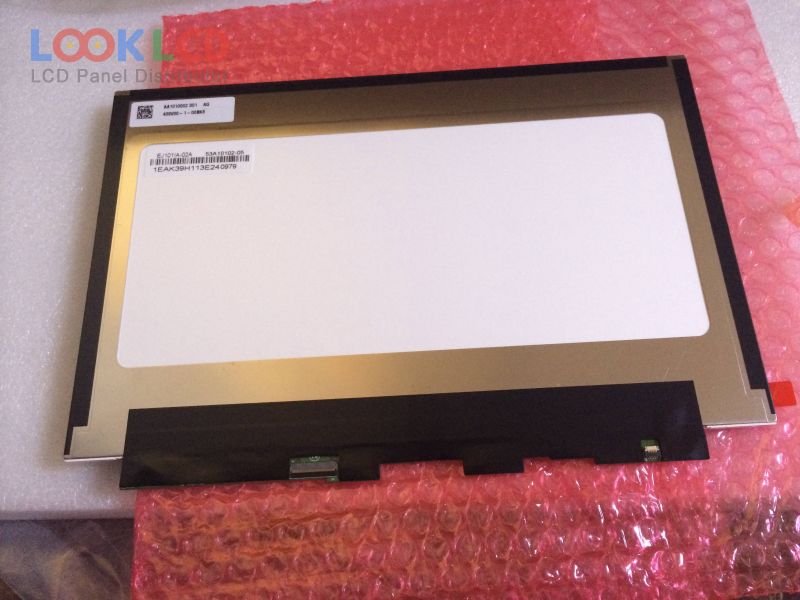

| Part Number | EJ101IA-02A |
| Mark | Innolux |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 1000:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | EJ101IA-02A |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 216.96×135.6 mm |
| skizzéieren | 226.33×157.3×3.14 mm |
| Uewerfläch | |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + FRC), CIE193150% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S6PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 45 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
