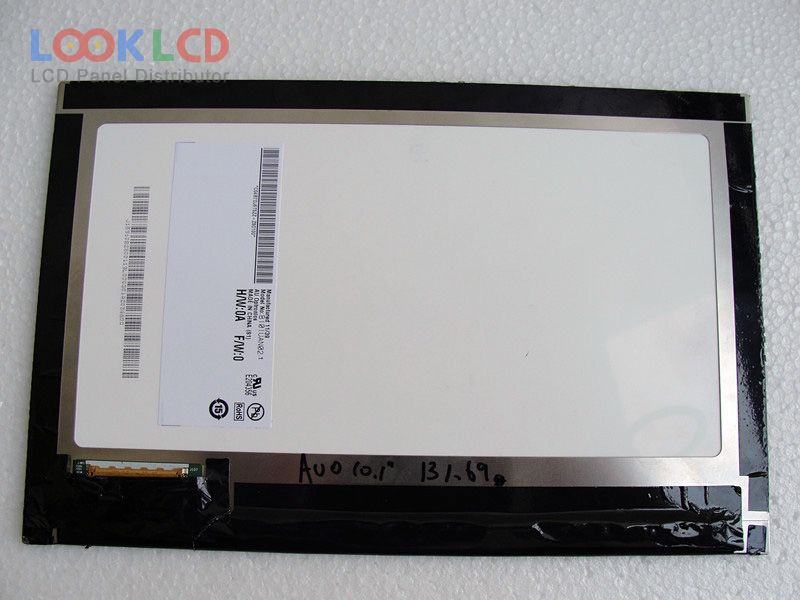

| Part Number | B101UAN02.1 |
| Mark | AUO |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 1920×1200 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | B101UAN02.1 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1920(RGB)×1200 , WUXGA |
| Display Modus | AHVA, Normally Black, Transmissive |
| aktiv Beräich | 216.81×135.5 mm |
| skizzéieren | 229.45×149.2×5 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193168% |
| Äntwert Zäit | 13/12 (Typ.)(Tr/Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 5 stringsWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 50 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW2A | AUO | 10.1 | 1920×1200 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| B101UAN07.0 | AUO | 10.1 | 1200×1920 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| B101UAT02.1 | AUO | 10.1 | 1920×1200 |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| BP101WX1-100 | BOE | 10.1 | 1280×800 |
| HJ101IA-01Q | Innolux | 10.1 | 1280×800 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| LP079X01-SMA2 | LG Display | 7.9 | 768×1024 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP125WH2-SLT1 | LG Display | 12.5 | 1366×768 |
| P120ZDG-BF2 | Innolux | 12.0 | 2160×1440 |
| YX101GL-01A | SEBO | 10.1 | 1280×800 |
