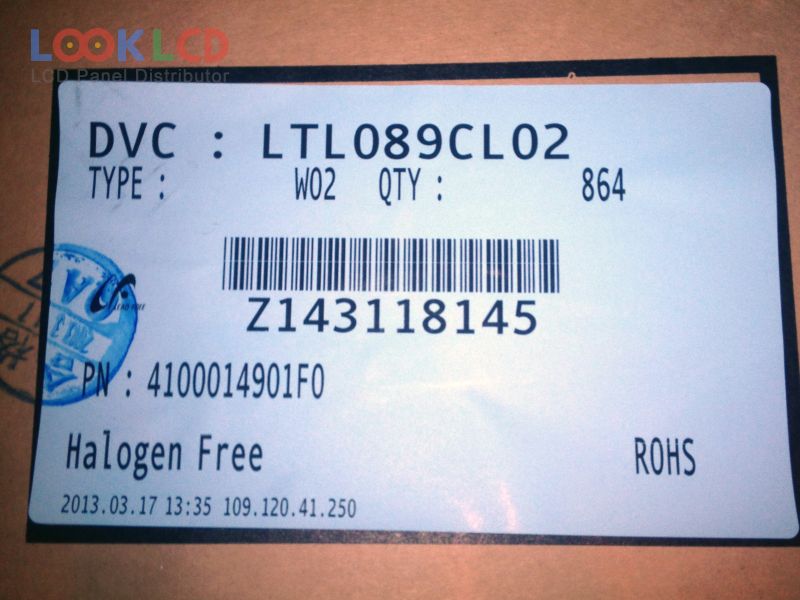

| Part Number | LTL089CL02-W02 |
| Mark | Samsung |
| Gréisst | 8.9 |
| Applikatioun | PAD |
| Opléisung | 1920×1200 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 900:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | SAMSUNG |
| Panel Modell | LTL089CL02-W02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.9 inch |
| Resolutioun | 1920(RGB)×1200 , WUXGA |
| Display Modus | PLS, Normally Black, Transmissive |
| aktiv Beräich | 191.52×119.7 mm |
| skizzéieren | 203.5×135.9×5.2 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (2H) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S5PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 45 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
