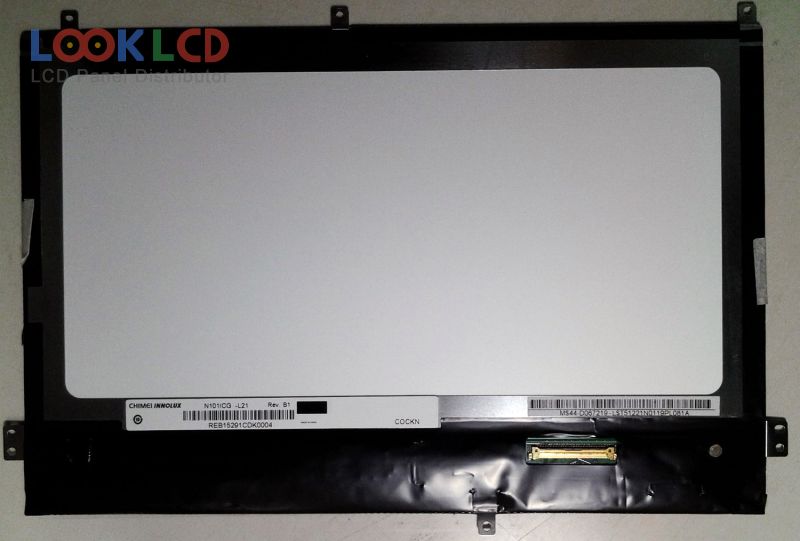

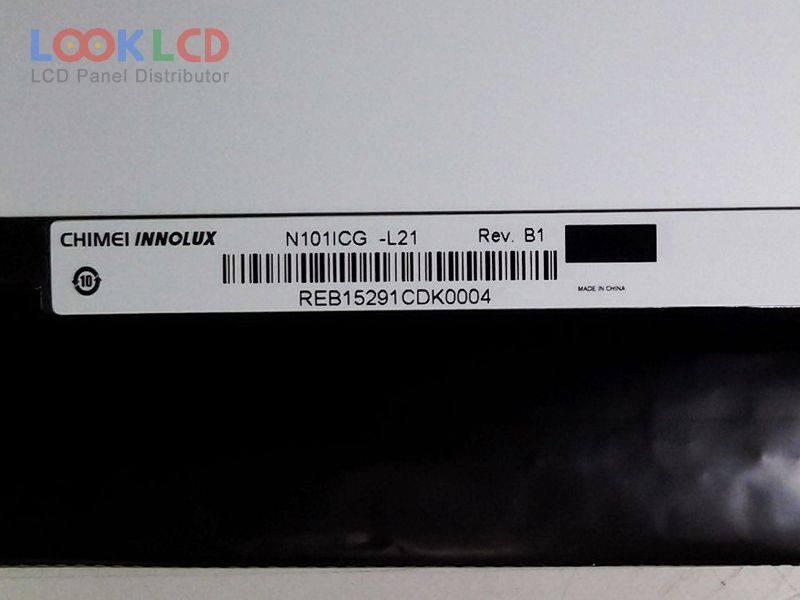

| Part Number | N101ICG-L21 Rev.B1 |
| Mark | Innolux |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | N101ICG-L21 Rev.B1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | AAS, Normally Black, Transmissive |
| aktiv Beräich | 216.96×135.6 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 14/11 (Typ.)(Tr/Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3 stringsWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
| A101SW02 V1 | AUO | 10.1 | 1024×600 |
| B101EAN01.3 | AUO | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| LTN101NT07-W01 | Samsung | 10.1 | 1024×600 |
| M101NWT2 R3 | IVO | 10.1 | 1024×600 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.A1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| CLAA070WP06 XG | CPT | 7.0 | 800×1280 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| HJ070IA-01I | Innolux | 7.0 | 1024×600 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| Q070LRE-LB1 | Innolux | 7.0 | 1024×600 |
