Innolux N101ICG-L21 Rev.C1 Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

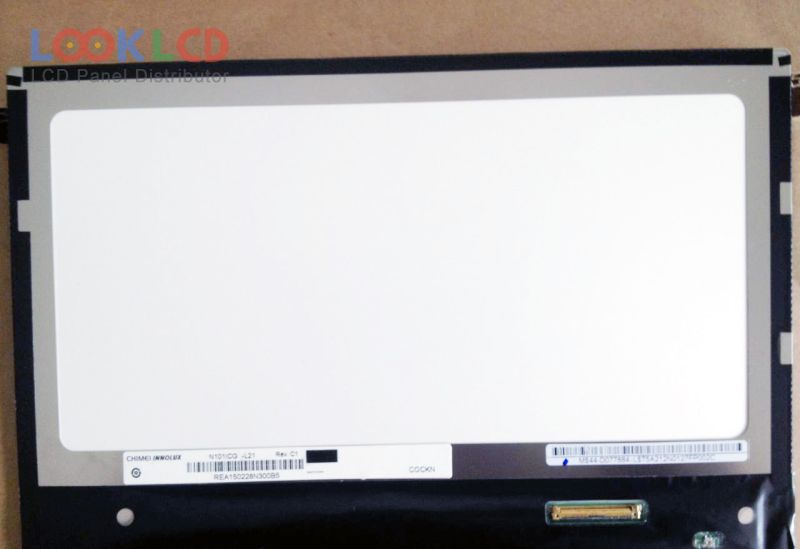

N101ICG-L21 Rev.C1

N101ICG-L21 Rev.C1
N101ICG-L21 Rev.C1 thumb
Mark
Innolux
Gréisst
10.1
Applikatioun
PAD
Opléisung
1280×800
Zesummesetzung
LCM
Hellegkeet
350
CR
800:1
Faarwen
262K
Backlight
WLED
Interface
LVDS
In Stock
3180
Spezifikatioune

Part Number N101ICG-L21 Rev.C1
MarkInnolux
Gréisst10.1
ApplikatiounPAD
Opléisung1280×800
ZesummesetzungLCM
Hellegkeet350
CR800:1
Faarwen262K
GéigeliichtWLED
InterfaceLVDS
Panel MarkCMO
Panel ModellN101ICG-L21 Rev.C1 2 Compatible model
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst10.1 inch
Resolutioun1280(RGB)×800 , WXGA
Display ModusAAS, Normally Black, Transmissive
aktiv Beräich216.96×135.6 mm
skizzéieren227.42×147.69×4.85 mm
UewerflächGlare (Haze 0%), Hard coating (3H)
Hellegkeet350 cd/m² (Typ.)
Kontrast Verhältnis800:1 (Typ.)
weisen Faarwen262K (6-bit), CIE193150%
Äntwert Zäit14/11 (Typ.)(Tr/Td)
Vue Wénkel85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ3 stringsWLEDEmbedded (LED Driver)
Signal InterfaceLVDS (1 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounPAD
Famill Modell
BP101WX1-210 BOE 10.1 1280×800
HSD101PWW1-B00 HannStar 10.1 1280×800
HSD101PWW1-F01 HannStar 10.1 1280×800
HSD101PWW1-G10 HannStar 10.1 1280×800
N101ICG-L11 Innolux 10.1 1280×800
N101ICG-L21 Rev.A1 Innolux 10.1 1280×800
N101ICG-L21 Rev.B1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C2 Innolux 10.1 1280×800
VVX10F002A00 Panasonic 10.1 1920×1200
