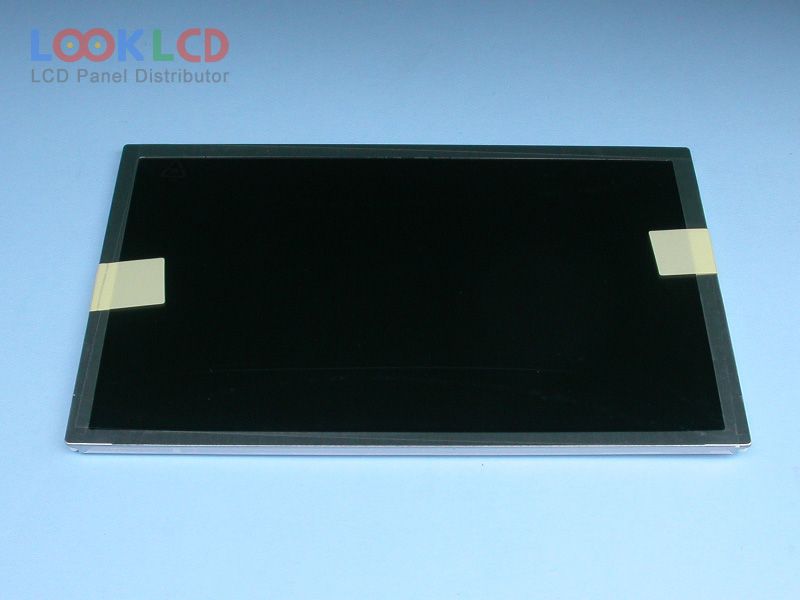

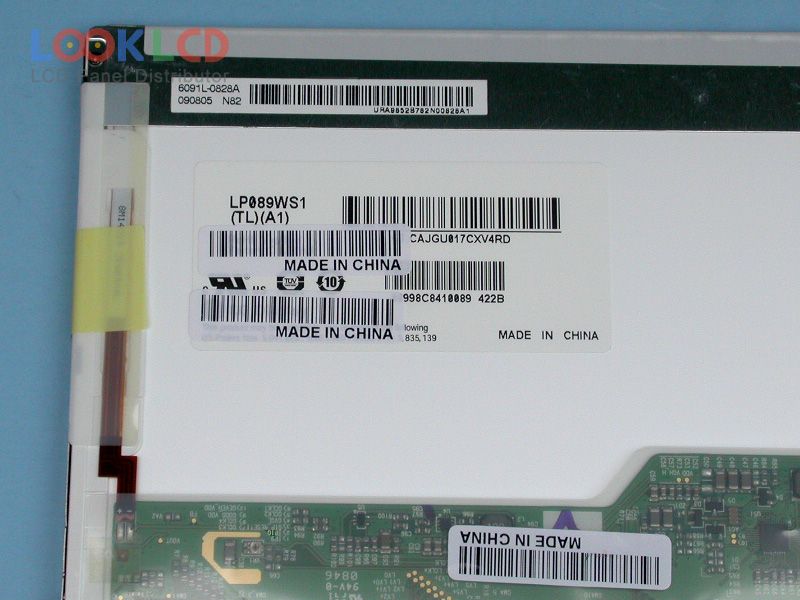

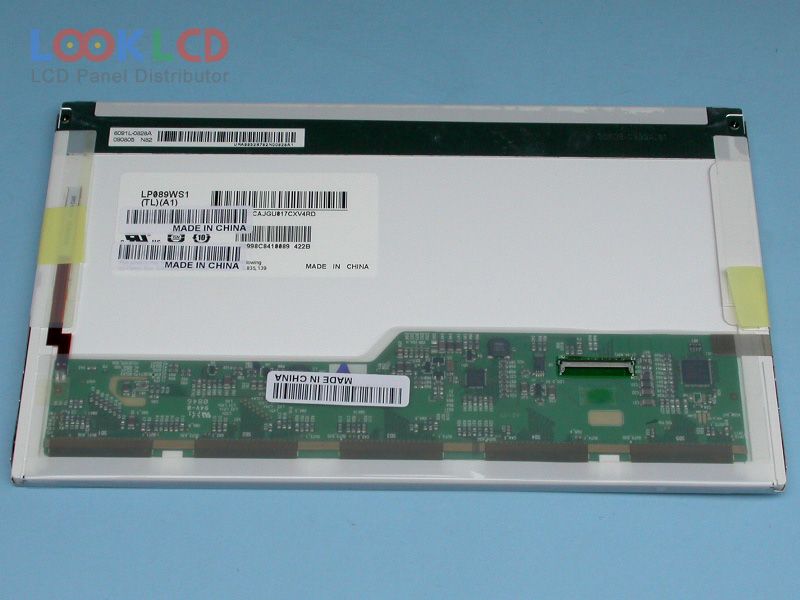

| Part Number | LP089WS1-TLA1 |
| Mark | LG Display |
| Gréisst | 8.9 |
| Applikatioun | NOPC |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 180 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LP089WS1-TLA1 7 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.9 inch |
| Resolutioun | 1024(RGB)×600 , WSVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 195.072×113.4 mm |
| skizzéieren | 213.4×129.6×5.45 mm |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 180 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6 stringsWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NOPC |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| HSD089IFW1-B00 | HannStar | 8.9 | 1024×600 |
| LP089WS1-TLA1 | LG Display | 8.9 | 1024×600 |
| LP089WS2-TLB1 | LG Display | 8.9 | 1024×600 |
| LPM089A001A | JDI | 8.9 | 2560×1600 |
| LT089AC29000 | TOSHIBA | 8.9 | 1280×768 |
| LTM09C362 | TOSHIBA | 8.9 | 1024×600 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| TFTMD089030 | JDI | 8.9 | 2560×1600 |
| B101AW02 V0 | AUO | 10.1 | 1024×600 |
| B101AW06 V4 | AUO | 10.1 | 1024×600 |
| BT101IW02 V.0 | Innolux | 10.1 | 1024×600 |
| BT101IW04 V.0 | Innolux | 10.1 | 1024×600 |
| HSD070PFW1-A00 | HannStar | 7.0 | 1024×600 |
| LP101WS1-TLB1 | LG Display | 10.1 | 1024×576 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| M101NWT4 R3 | IVO | 10.1 | 1024×600 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| SVA101WV1(01TA)(A) | SVA-NEC | 10.0 | 1024×576 |
