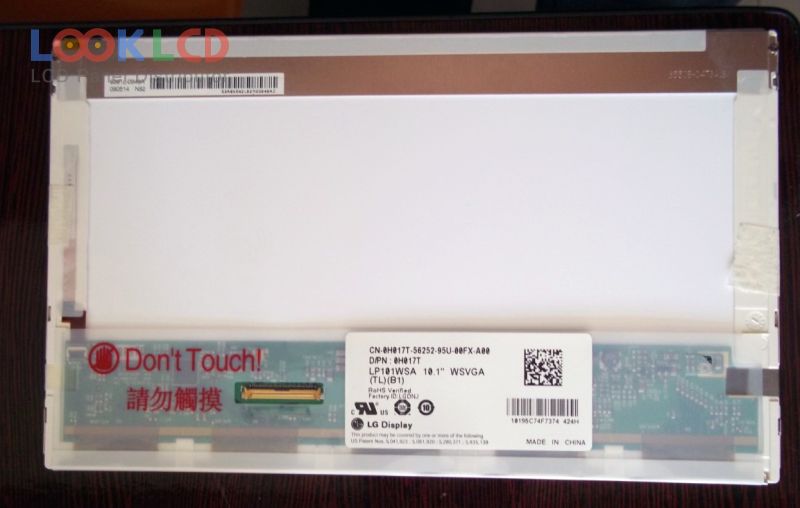

| Part Number | LP101WSA-TLB1 |
| Mark | LG Display |
| Gréisst | 10.1 |
| Applikatioun | NOPC |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG.Philips LCD |
| Panel Modell | LP101WSA-TLB1 9 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1024(RGB)×600 , WSVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 222.72×125.28 mm |
| skizzéieren | 235×143×5.2 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Min.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NOPC |
| LP101WH1-TLB1 | LG Display | 10.1 | 1366×768 |
| LP101WH1-TLB2 | LG Display | 10.1 | 1366×768 |
| LP101WH1-TLB5 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLA3 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLAA | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLAF | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLP2 | LG Display | 10.1 | 1366×768 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| LP101WSA-TLN1 | LG Display | 10.1 | 1024×600 |
| LP101WX1-SLP2 | LG Display | 10.1 | 1280×800 |
| B089AW01 V1 | AUO | 8.9 | 1024×600 |
| BT101IW04 V.0 | Innolux | 10.1 | 1024×600 |
| CLAA102NC01CW | CPT | 10.2 | 1024×600 |
| HSD101PFW3-A00 | HannStar | 10.1 | 1024×600 |
| LP101WSB-TLN1 | LG Display | 10.1 | 1024×600 |
| LP116WH1-TLP1 | LG Display | 11.6 | 1366×768 |
| LTN116AT02-D01 | Samsung | 11.6 | 1366×768 |
| M101NWT2 R0 | IVO | 10.1 | 1024×600 |
| N101L6-L0A | Innolux | 10.1 | 1024×600 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
