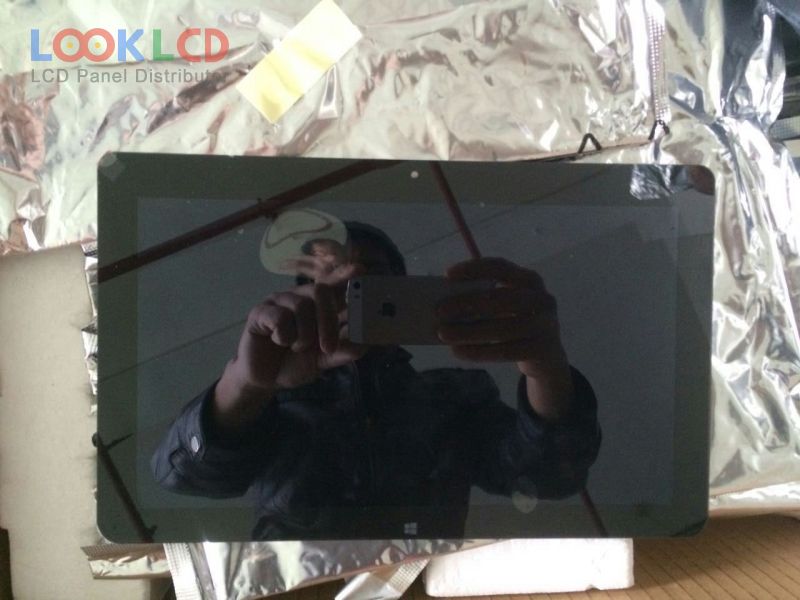

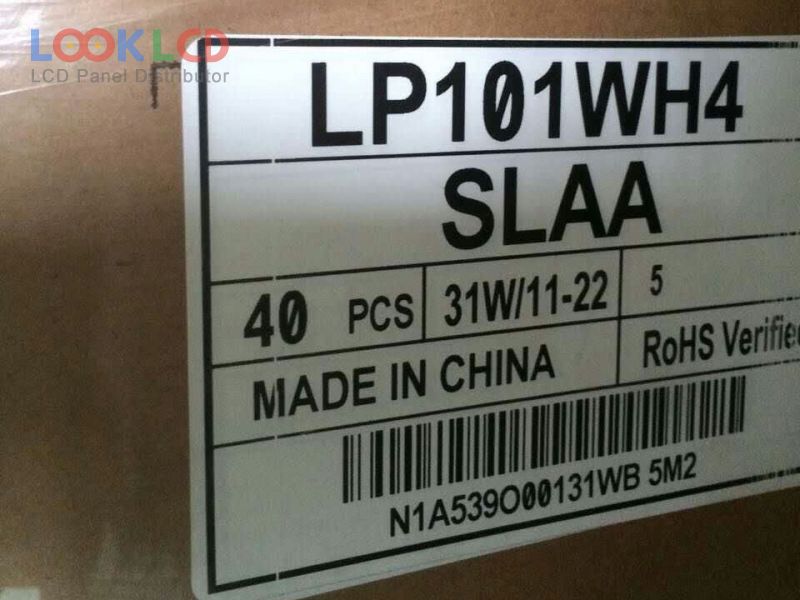

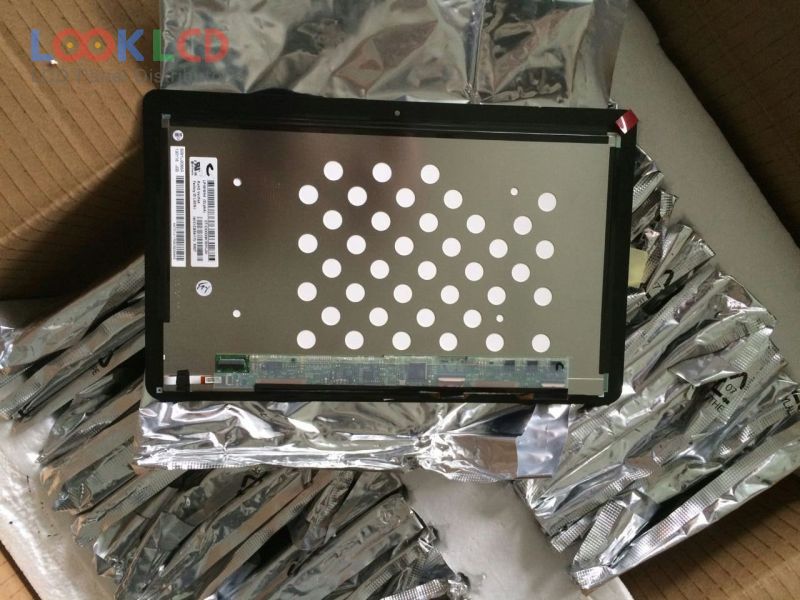

| Part Number | LP101WH4-SLAA |
| Mark | LG Display |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 1366×768 |
| Zesummesetzung | Assembly |
| Hellegkeet | 315 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LP101WH4-SLAA |
| Panel Typ | a-Si TFT-LCD , Assembly |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| aktiv Beräich | 222.52×125.11 mm |
| skizzéieren | 254.3×158×5.45 mm |
| Uewerfläch | Anti Fingerprint, Hard coating (8H) |
| Hellegkeet | 315 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | LVDS (1 ch, 8-bit), 39 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
