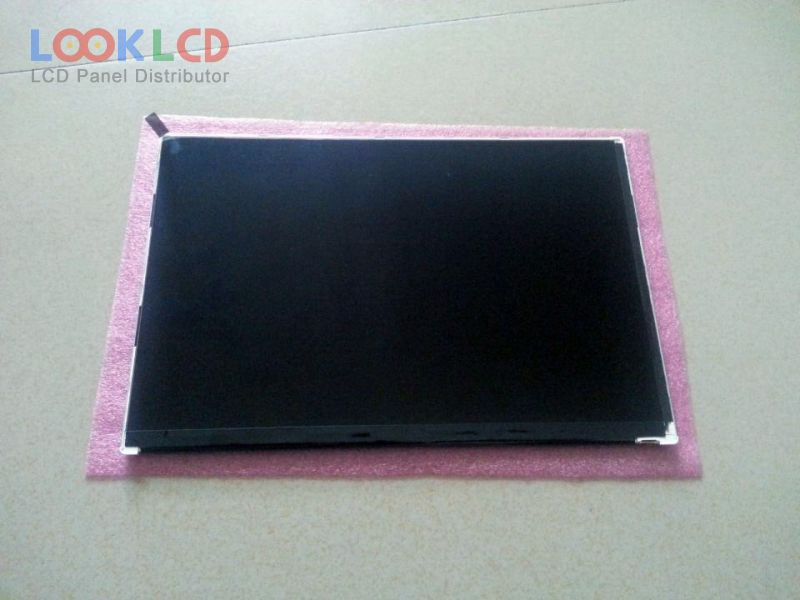

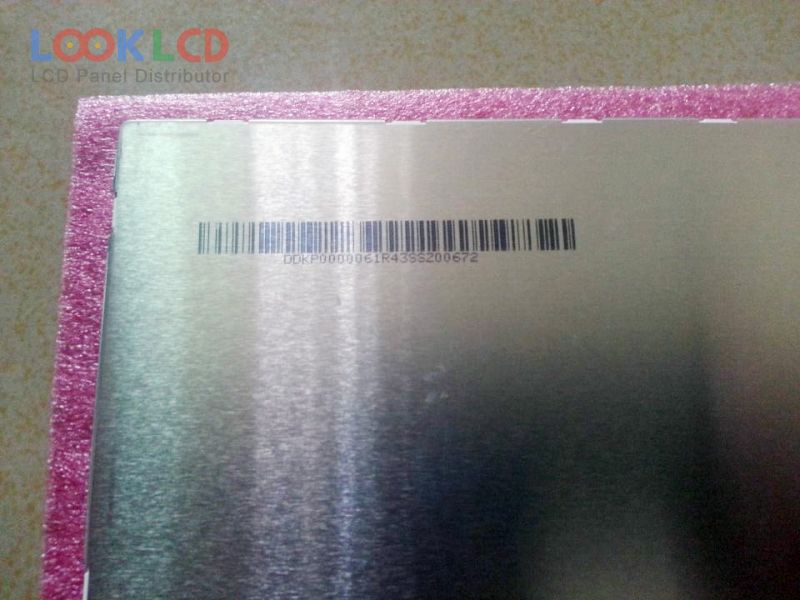

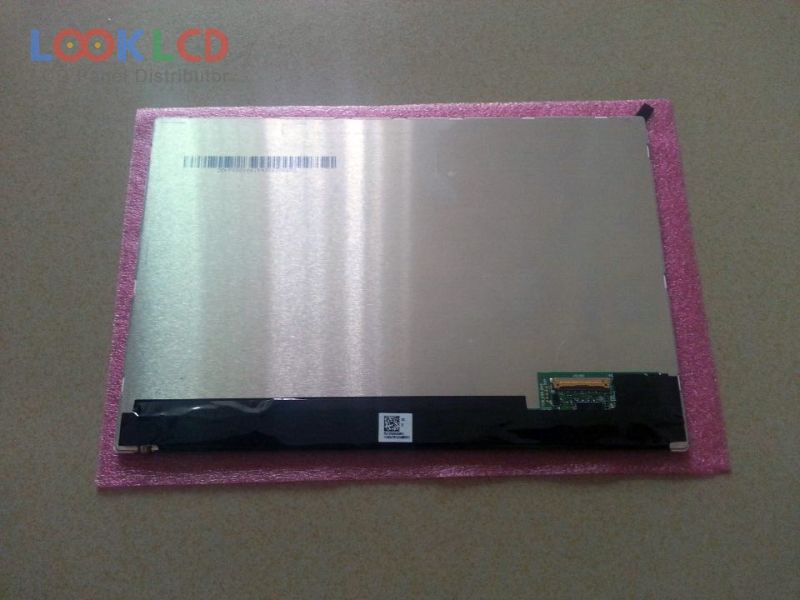

| Part Number | VVX09F035M20 |
| Mark | Panasonic |
| Gréisst | 8.9 |
| Applikatioun | PAD |
| Opléisung | 1920×1200 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | Panasonic |
| Panel Modell | VVX09F035M20 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.9 inch |
| Resolutioun | 1920(RGB)×1200 , WUXGA |
| Display Modus | IPS-Pro, Normally Black, Transmissive |
| aktiv Beräich | 191.52×119.7 mm |
| skizzéieren | 203.5×135.9×4.8 mm |
| Uewerfläch | Hard coating |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Dithering), CIE193150% |
| Äntwert Zäit | 30 (Max.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥80)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S5PWLEDWithout Driver |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
