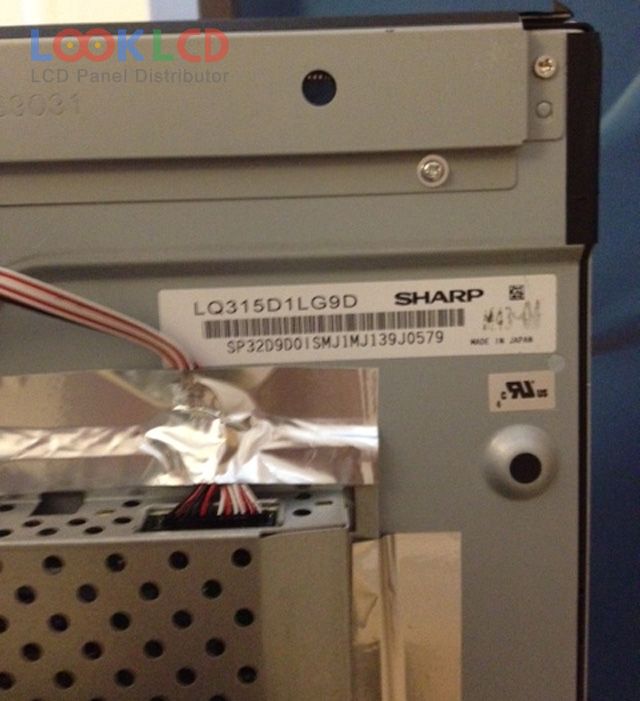

| Part Number | LQ315D1LG9D |
| Mark | SHARP |
| Gréisst | 31.5 |
| Applikatioun | DMPC |
| Opléisung | 3840×2160 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 1000:1 |
| Faarwen | 1.07B |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SHARP |
| Panel Modell | LQ315D1LG9D |
| Panel Typ | IGZO TFT-LCD , LCM |
| Panel Gréisst | 31.5 inch |
| Resolutioun | 3840(RGB)×2160 , UHD |
| Display Modus | New Mode2, Normally Black, Transmissive |
| aktiv Beräich | 697.92×392.58 mm |
| Uewerfläch | Antiglare, Hard coating (3H), Antireflection |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 1.07B (10-bit), Adobe |
| Äntwert Zäit | 8 (Typ.)(G to G) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (8 ch, 10-bit) |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | DMPC |
