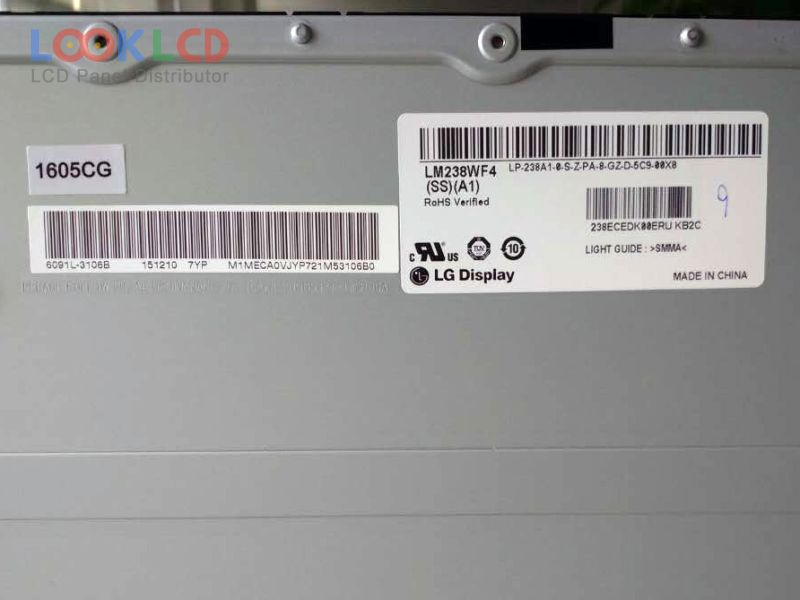

| Part Number | LM238WF4-SSA1 |
| Mark | LG Display |
| Gréisst | 23.8 |
| Applikatioun | DMPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LM238WF4-SSA1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 23.8 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 527.04×296.46 mm |
| skizzéieren | 534.9×306.95×12.9 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193176% |
| Äntwert Zäit | 14 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 14S4PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
| LM238WF1-SLE1 | LG Display | 23.8 | 1920×1080 |
| LM238WF1-SLK1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSF1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSG2 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSK1 | LG Display | 23.8 | 1920×1080 |
| LM238WF4-SSA1 | LG Display | 23.8 | 1920×1080 |
| LM238WQ1-SLA1 | LG Display | 23.8 | 2560×1440 |
| LM238WR1-SLA1 | LG Display | 23.8 | 3840×2160 |
| LM238WR2-SLA1 | LG Display | 23.8 | 3840×2160 |
| CLAA185WA03 | CPT | 18.5 | 1366×768 |
| HR236WU3-301 | BOE | 23.6 | 1920×1080 |
| LM190E0A-SLA1 | LG Display | 19.0 | 1280×1024 |
| LM230WF3-SLQ1 | LG Display | 23.0 | 1920×1080 |
| LM240WU4-SLB1 | LG Display | 24.0 | 1920×1200 |
| LM240WU5-SLA1 | LG Display | 24.0 | 1920×1200 |
| LM240WU7-SLA3 | LG Display | 24.0 | 1920×1200 |
| LM270WF5-SSA1 | LG Display | 27.0 | 1920×1080 |
| M220Z1-L03 | Innolux | 22.0 | 1680×1050 |
| M270H3-L01 | Innolux | 27.0 | 1920×1080 |
