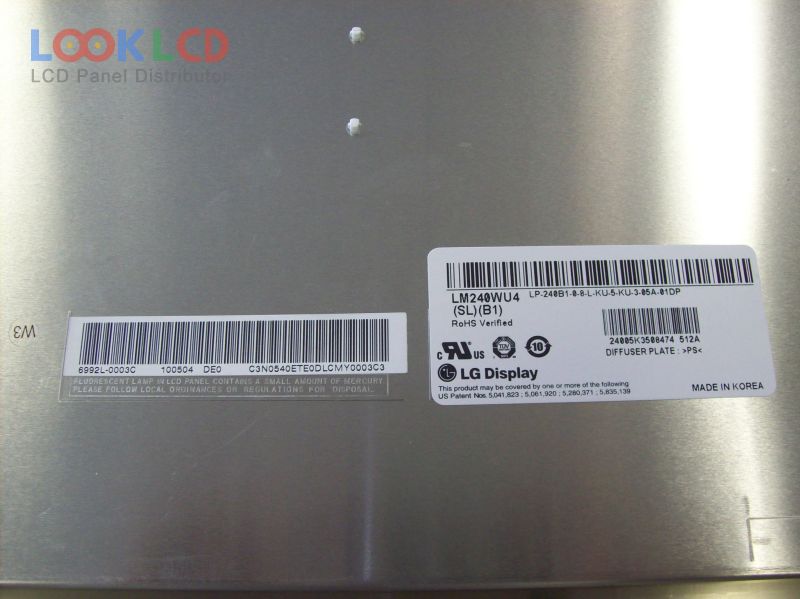

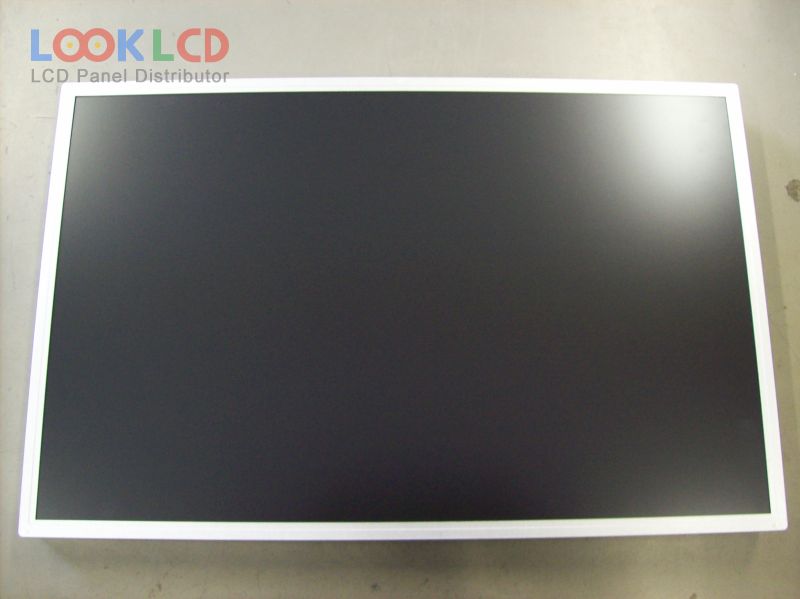

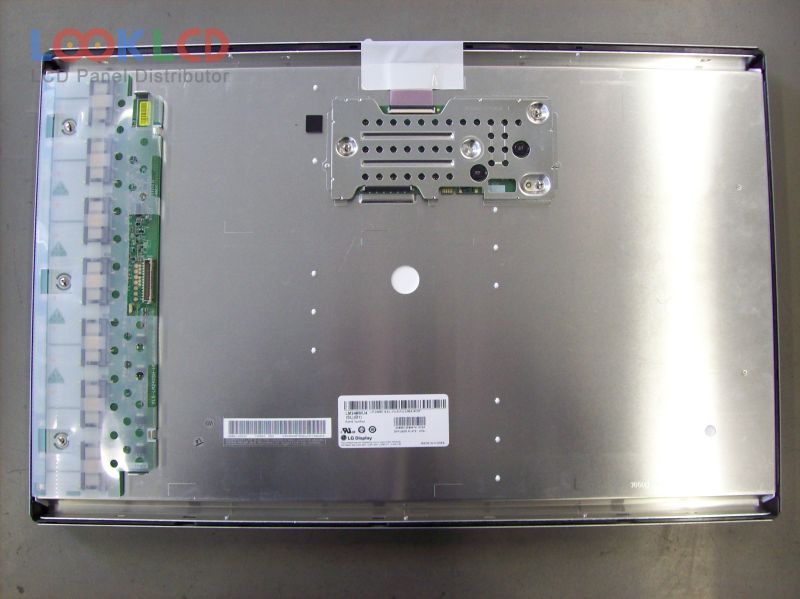

| Part Number | LM240WU4-SLB1 |
| Mark | LG Display |
| Gréisst | 24.0 |
| Applikatioun | DMPC |
| Opléisung | 1920×1200 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 1000:1 |
| Faarwen | 1.07B |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LM240WU4-SLB1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 24.0 inch |
| Resolutioun | 1920(RGB)×1200 , WUXGA |
| Display Modus | S-IPS, Normally Black, Transmissive |
| aktiv Beräich | 518.4×324 mm |
| skizzéieren | 546.4×352×40.8 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 1.07B (8-bit + Hi-FRC), CIE1931102% |
| Äntwert Zäit | 6/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (2 ch, 10-bit), 51 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | DMPC |
