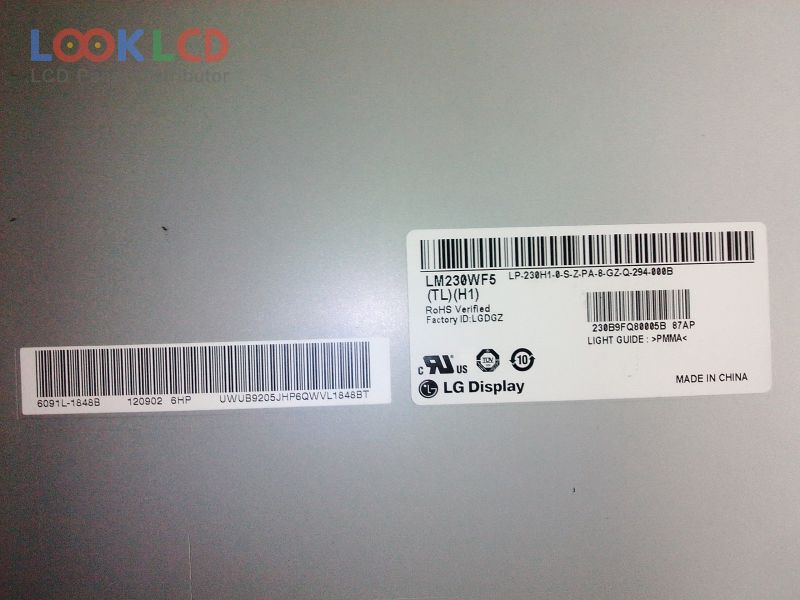

LM230WF5-TLH1

LM230WF5-TLH1
LM230WF5-TLH1 thumb
Mark
LG Display
Gréisst
23.0
Applikatioun
DMPC
Opléisung
1920×1080
Zesummesetzung
LCM
Hellegkeet
250
CR
600:1
Faarwen
16.7M
Backlight
WLED
Interface
LVDS
In Stock
10008
Spezifikatioune

Part Number LM230WF5-TLH1
MarkLG Display
Gréisst23.0
ApplikatiounDMPC
Opléisung1920×1080
ZesummesetzungLCM
Hellegkeet250
CR600:1
Faarwen16.7M
GéigeliichtWLED
InterfaceLVDS
Panel MarkLG Display
Panel ModellLM230WF5-TLH1
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst23.0 inch
Resolutioun1920(RGB)×1080 , FHD
Display ModusTN, Normally White, Transmissive
aktiv Beräich509.184×286.416 mm
skizzéieren533.2×312×10.7 mm
UewerflächAntiglare, Hard coating (3H)
Hellegkeet250 cd/m² (Typ.)
Kontrast Verhältnis600:1 (Typ.)
weisen Faarwen16.7M (6-bit + Hi-FRC), CIE193172%
Äntwert Zäit1.3/3.7 (Typ.)(Tr/Td)
Vue Wénkel45/45/15/35 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ2 stringsWLEDWithout Driver
Signal InterfaceLVDS (2 ch, 8-bit), 30 pins
Input Volt5.0V (Typ.)
ApplikatiounDMPC
