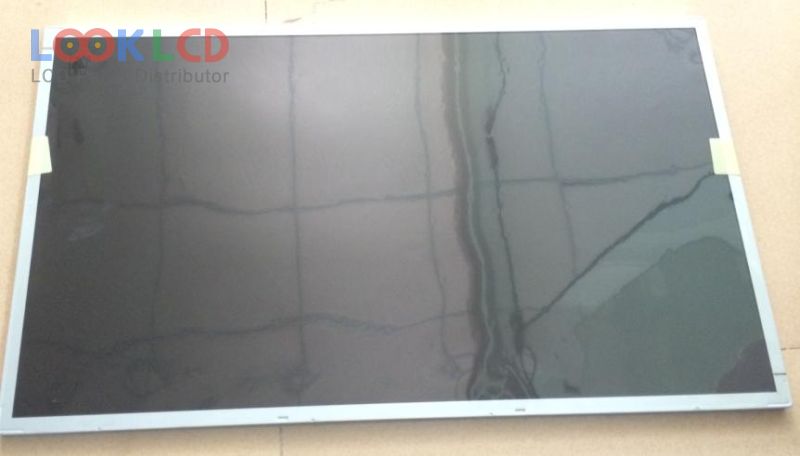

| Part Number | LM230WF3-SLL1 |
| Mark | LG Display |
| Gréisst | 23.0 |
| Applikatioun | DMPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LM230WF3-SLL1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 23.0 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 509.184×286.416 mm |
| skizzéieren | 533.2×312×11 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 14 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 17S2PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
