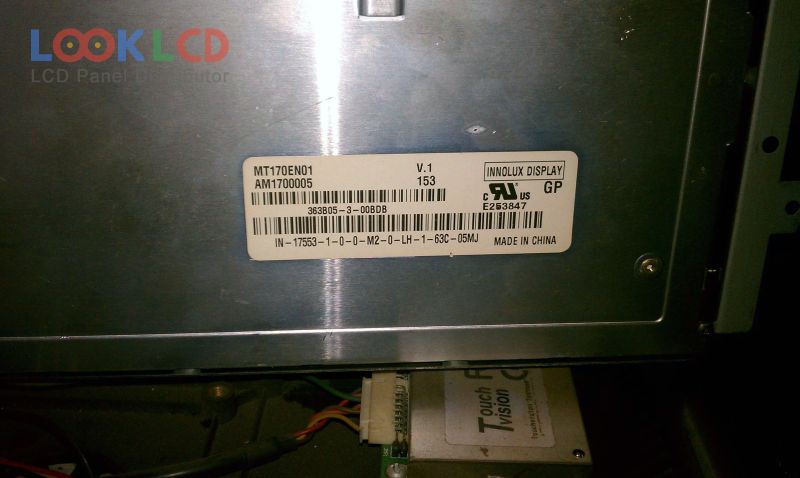

| Part Number | MT170EN01 V.1 |
| Mark | Innolux |
| Gréisst | 17.0 |
| Applikatioun | DMPC |
| Opléisung | 1280×1024 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 500:1 |
| Faarwen | 16.2M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | INNOLUX |
| Panel Modell | MT170EN01 V.1 5 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.0 inch |
| Resolutioun | 1280(RGB)×1024 , SXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 337.92×270.336 mm |
| skizzéieren | 358.5×296.5×17.5 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + FRC), CIE193172% |
| Äntwert Zäit | 3/9 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| rohs: | |
| Applikatioun | DMPC |
| HM185WX1-300 | BOE | 18.5 | 1366×768 |
| LM170E01-TLB3 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ2 | LG Display | 17.0 | 1280×1024 |
| LM190E08-TLL1 | LG Display | 19.0 | 1280×1024 |
| LM230WF1-TLA3 | LG Display | 23.0 | 1920×1080 |
| LM300WQ6-SLA1 | LG Display | 30.0 | 2560×1600 |
| M195FGE-L20 | Innolux | 19.5 | 1600×900 |
| M238DAN01.1 Q0 | AUO | 23.8 | 2560×1440 |
| NL10276AC30-07 | NLT | 15.0 | 1024×768 |
| NL128102AC23-01 | NLT | 15.4 | 1280×1024 |
