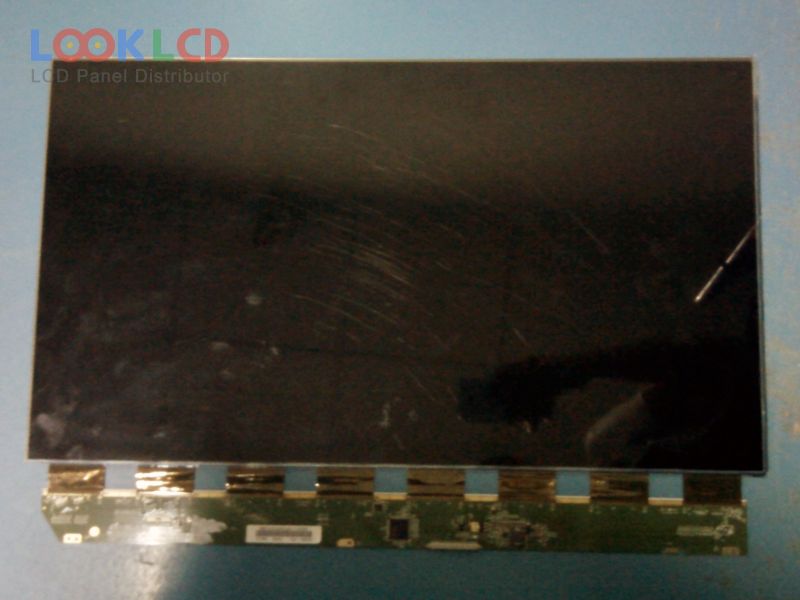

M236H1-P01

M236H1-P01
M236H1-P01 thumb
Mark
Innolux
Gréisst
23.6
Applikatioun
DMPC
Opléisung
1920×1080
Zesummesetzung
CELL
Hellegkeet
0
CR
1000:1
Faarwen
16.7M
Backlight
No B/L
Interface
LVDS
In Stock
20
Spezifikatioune

Part Number M236H1-P01
MarkInnolux
Gréisst23.6
ApplikatiounDMPC
Opléisung1920×1080
ZesummesetzungCELL
Hellegkeet0
CR1000:1
Faarwen16.7M
GéigeliichtNo B/L
InterfaceLVDS
Panel MarkCMO
Panel ModellM236H1-P01
Panel Typ a-Si TFT-LCD , CELL
Panel Gréisst23.6 inch
Resolutioun1920(RGB)×1080 , FHD
Display ModusTN, Normally White, Transmissive
aktiv Beräich521.28×293.22 mm
UewerflächAntiglare (Haze 25%), Hard coating (3H)
transmissivitéit5.25% (Typ.)(with Polarizer)
Kontrast Verhältnis1000:1 (Typ.)
weisen Faarwen16.7M (8-bit)
Äntwert Zäit1.5/3.5 (Typ.)(Tr/Td)
Vue Wénkel85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Signal InterfaceLVDS (2 ch, 8-bit), 30 pins
Input Volt5.0V (Typ.)
ApplikatiounDMPC
Famill Modell
M236H1-L07 Innolux 23.6 1920×1080
M236H1-P01 Innolux 23.6 1920×1080
M236H3-L05 Innolux 23.6 1920×1080
M236H3-LA2 Innolux 23.6 1920×1080
M236H3-LA3 Innolux 23.6 1920×1080
M236HGE-L20 Innolux 23.6 1920×1080
M236HGJ-L11 Innolux 23.6 1920×1080
M236HJJ-L30 Innolux 23.6 1920×1080
M236HJJ-L31 Innolux 23.6 1920×1080
M236HJK-L3B Innolux 23.6 1920×1080
