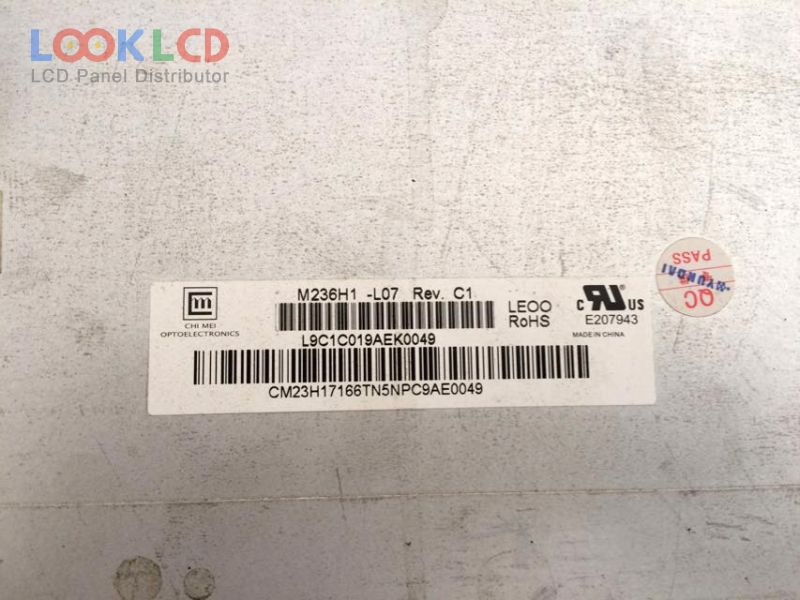

| Part Number | M236H1-L07 |
| Mark | Innolux |
| Gréisst | 23.6 |
| Applikatioun | DMPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | M236H1-L07 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 23.6 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 521.28×293.22 mm |
| skizzéieren | 544.8×320.5 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 1200:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 0.7/2.3 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
