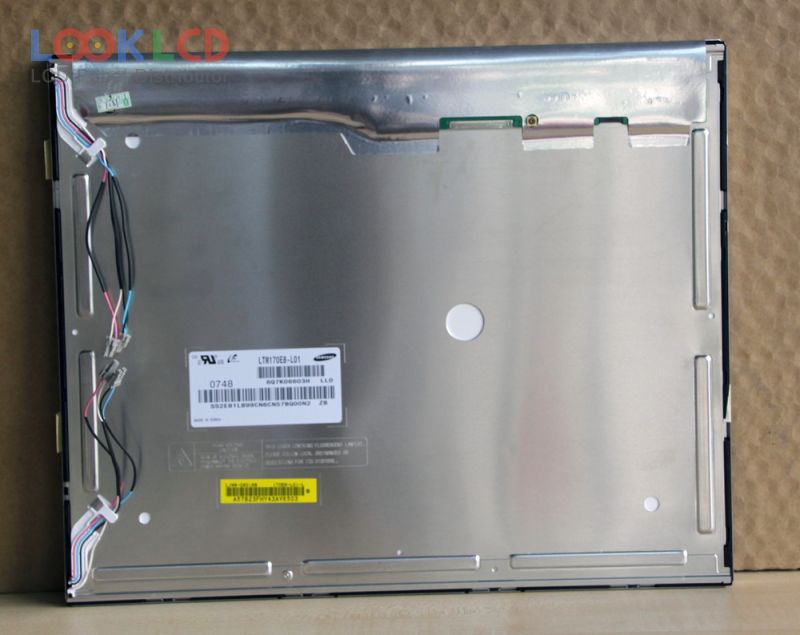

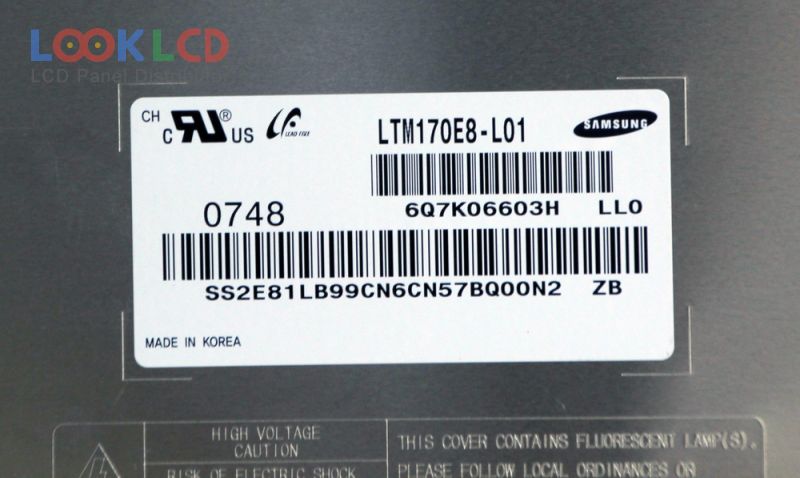

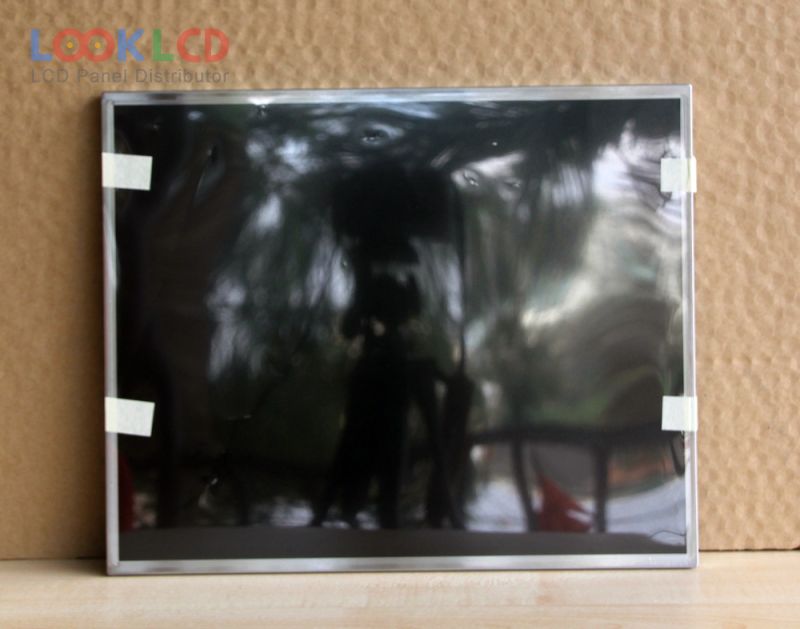

| Part Number | LTM170E8-L01 |
| Mark | Samsung |
| Gréisst | 17.0 |
| Applikatioun | DMPC |
| Opléisung | 1280×1024 |
| Zesummesetzung | LCM |
| Hellegkeet | 280 |
| CR | 1500:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTM170E8-L01 3 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.0 inch |
| Resolutioun | 1280(RGB)×1024 , SXGA |
| Display Modus | PVA, Normally Black, Transmissive |
| aktiv Beräich | 337.92×270.336 mm |
| skizzéieren | 354.9×290.3×13.3 mm |
| Uewerfläch | Antiglare (Haze 44%), Hard coating (3H) |
| Hellegkeet | 280 cd/m² (Typ.) |
| Kontrast Verhältnis | 1500:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 15/10 (Typ.)(Tr/Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
| LTM170E4-P01 | Samsung | 17.0 | 1280×1024 |
| LTM170E6-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L01 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L02 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170EI-A01 | Samsung | 17.0 | 1280×1024 |
| LTM170ET01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-A01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L31 | Samsung | 17.0 | 1280×1024 |
| LTM170W1-L01 | Samsung | 17.0 | 1280×768 |
| LM150X08-TL01 | LG Display | 15.0 | 1024×768 |
| LM185TT1A | PANDA | 18.5 | 1366×768 |
| LTM15C423S | TOSHIBA | 15.0 | 1024×768 |
| LTM170E8-L02 | Samsung | 17.0 | 1280×1024 |
| LTM213U3-L07 | Samsung | 21.3 | 1600×1200 |
| M156B1-L02 | Innolux | 15.6 | 1366×768 |
| M185XW01 V1 | AUO | 18.5 | 1366×768 |
| M270HGE-L20 | Innolux | 27.0 | 1920×1080 |
| MT190AW01 V.7 | Innolux | 19.0 | 1440×900 |
| TM150XG-26L06A | SANYO | 15.0 | 1024×768 |
