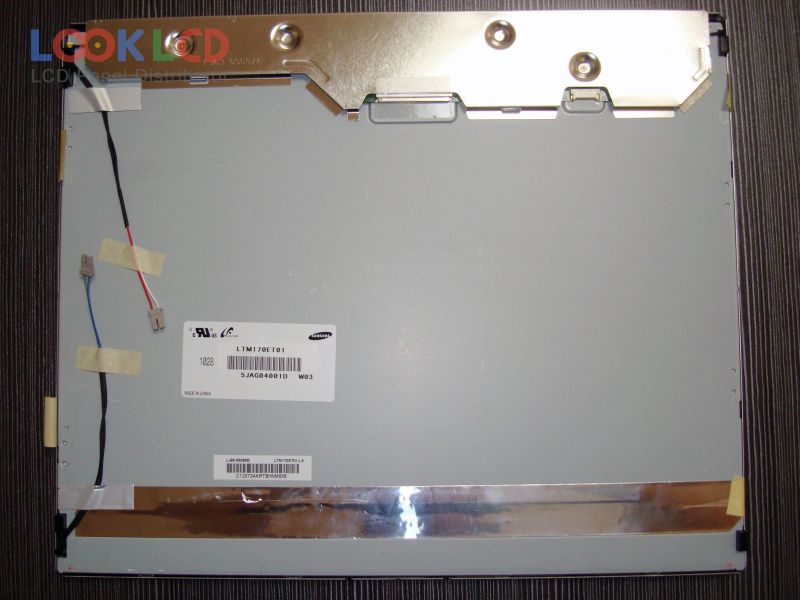

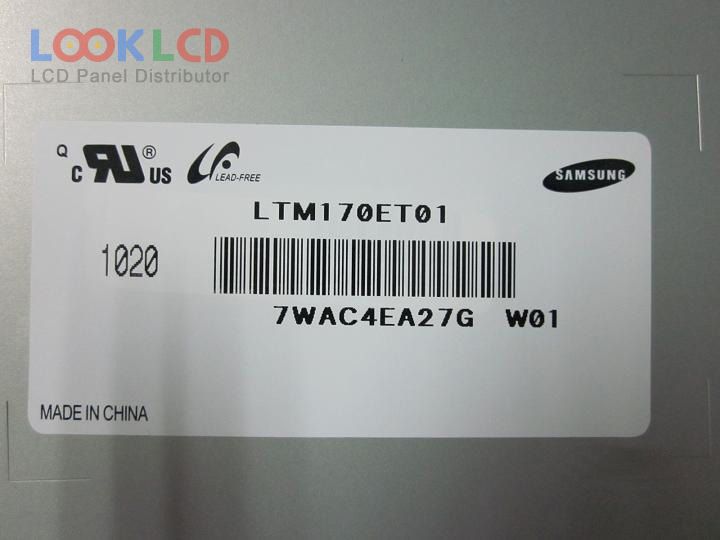

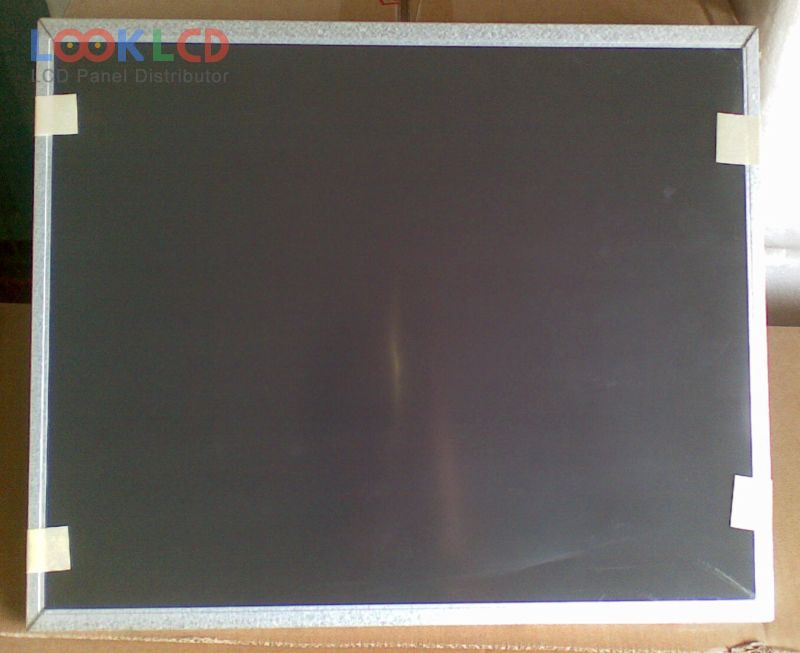

| Part Number | LTM170ET01 |
| Mark | Samsung |
| Gréisst | 17.0 |
| Applikatioun | DMPC |
| Opléisung | 1280×1024 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTM170ET01 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.0 inch |
| Resolutioun | 1280(RGB)×1024 , SXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 337.92×270.336 mm |
| skizzéieren | 358.5×296.5×17.5 mm |
| Uewerfläch | |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Min.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 5 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
| LTM170E6-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170E6-L04 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L01 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L02 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L21 | Samsung | 17.0 | 1280×1024 |
| LTM170ET01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| LTM170EX-L31 | Samsung | 17.0 | 1280×1024 |
| LTM170W1-L01 | Samsung | 17.0 | 1280×768 |
| CLAA170ES01E | CPT | 17.0 | 1280×1024 |
| IAQX10M | IDTech | 15.0 | 2048×1536 |
| L170E3 EC-5 | AUO | 17.0 | 1280×1024 |
| LM230WF5-TRA2 | LG Display | 23.0 | 1920×1080 |
| LM250WW1-SSA1 | LG Display | 25.0 | 2560×1080 |
| M150XN07 V1 | AUO | 15.0 | 1024×768 |
| M185BGE-L2U | Innolux | 18.5 | 1366×768 |
| M185XTN01.3 | AUO | 18.5 | 1366×768 |
| M185XW01 V2 | AUO | 18.5 | 1366×768 |
| M236H3-LA2 | Innolux | 23.6 | 1920×1080 |
