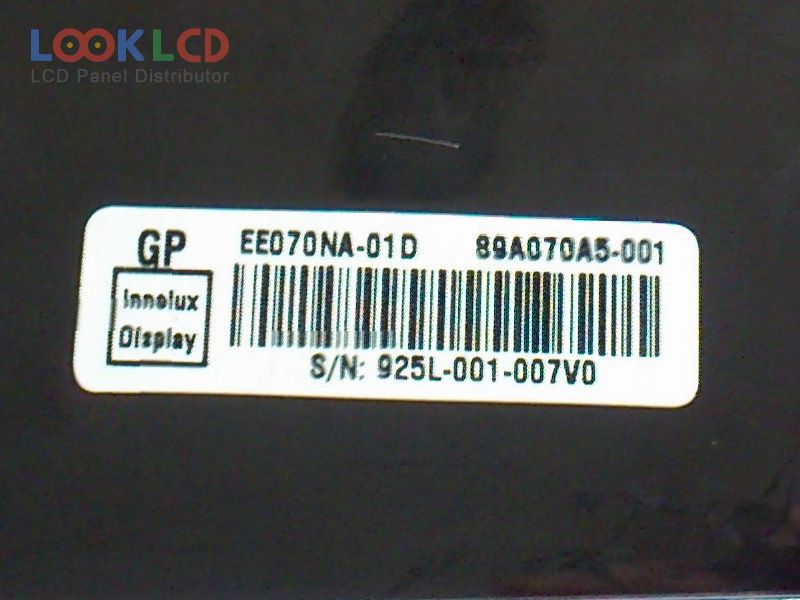

| Part Number | EE070NA-01D |
| Mark | Innolux |
| Gréisst | 7.0 |
| Applikatioun | MP4 |
| Opléisung | 1024×600 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 700:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | EE070NA-01D |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 1024(RGB)×600 , WSVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 153.6×90 mm |
| skizzéieren | 160×101.1×1.43 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating |
| Glas Déift | 0.50+0.50 mm |
| transmissivitéit | 3.5% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | LVDS (1 ch, 6/8-bit), 40 pins |
| Input Volt | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
