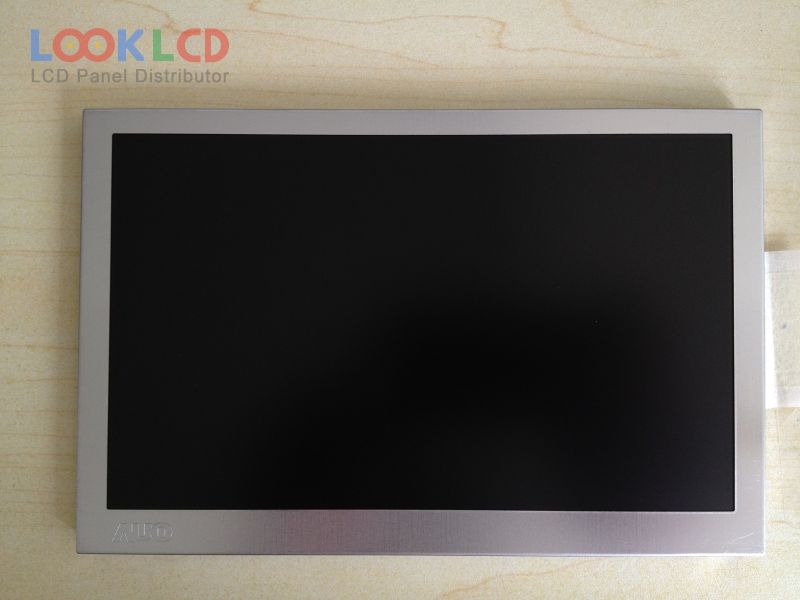

| Part Number | G070VW01 V1 |
| Mark | AUO |
| Gréisst | 7.0 |
| Applikatioun | IA |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 500:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | G070VW01 V1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 170×111×8.5 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| Äntwert Zäit | 12/18 (Typ.)(Tr/Td) |
| Vue Wénkel | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
