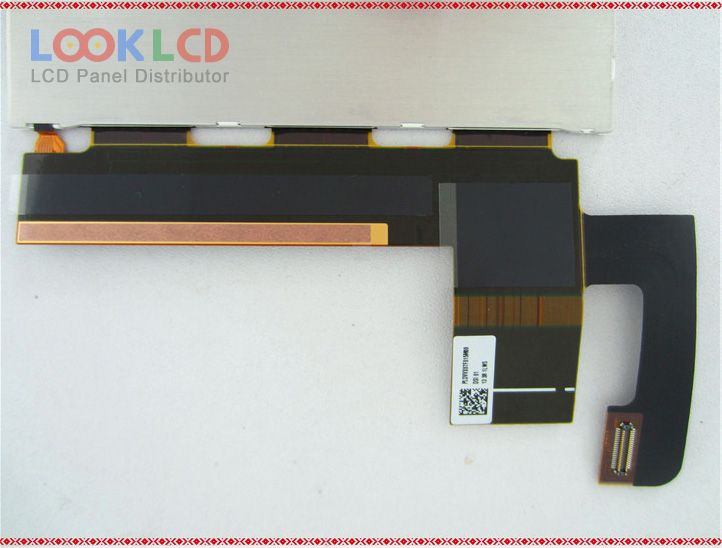

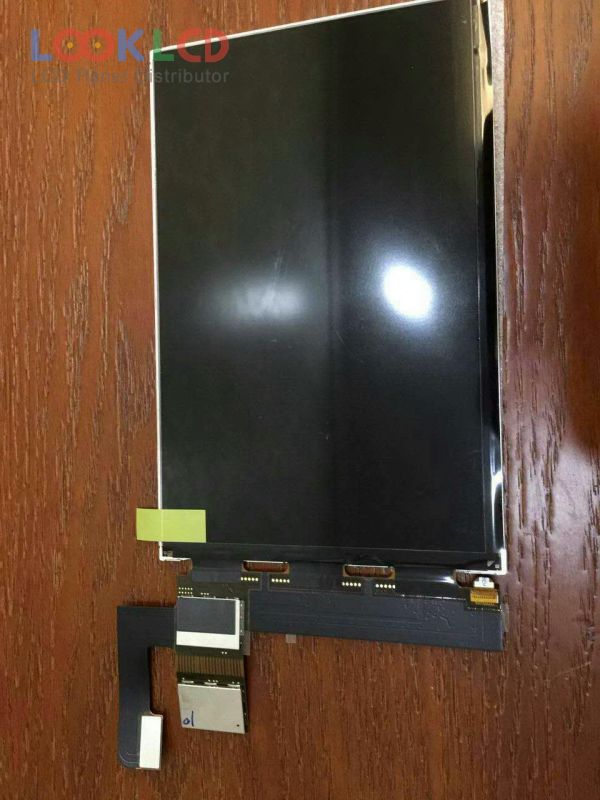

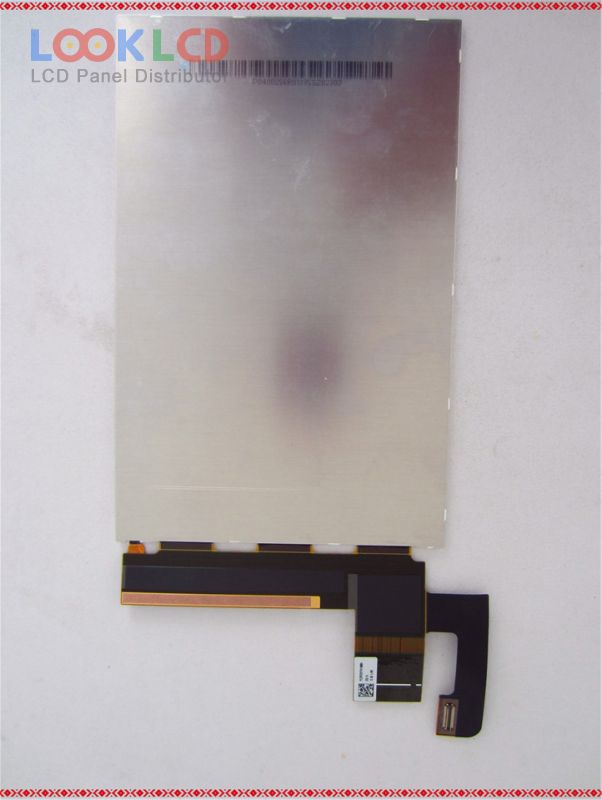

| Part Number | VVX07F015M00 |
| Mark | Panasonic |
| Gréisst | 7.0 |
| Applikatioun | PAD |
| Opléisung | 1200×1920 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | Panasonic |
| Panel Modell | VVX07F015M00 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 1200(RGB)×1920 , WUXGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 94.5×151.2 mm |
| skizzéieren | 104.52×161.87×2.4 mm |
| Uewerfläch | Hard coating |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 1200:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 30 (Max.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4S6PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 40 pins |
| Input Volt | 1.8/3.7V (Typ.)(VCC/VDD) |
| Applikatioun | PAD |
| A070FW03 V8 | AUO | 7.0 | 480×234 |
| AT070TN92 V.4 | Innolux | 7.0 | 800×480 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| G070VW01 V1 | AUO | 7.0 | 800×480 |
| HSD070PFW3-C01 | HannStar | 7.0 | 1024×600 |
| LD070WS1-SL02 | LG Display | 7.0 | 1024×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
| VVX07F015M00 | Panasonic | 7.0 | 1200×1920 |
| VVX07F023B00 | Panasonic | 7.0 | 1200×1920 |
| B080XAN03.0 | AUO | 7.9 | 768×1024 |
| B101EAN01.6 | AUO | 10.1 | 1280×800 |
| HE101NA-02C | Innolux | 10.1 | 1280×800 |
| HT12X21-240 | HYDIS | 12.1 | 1024×768 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| HX104X01-210 | HYDIS | 10.4 | 1024×768 |
| LP097X02-SLAA | LG Display | 9.7 | 1024×768 |
| LTN097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| VVX07H005A10 | Panasonic | 7.0 | 800×1280 |
| VVX10F004B00 | Panasonic | 10.1 | 1920×1200 |
