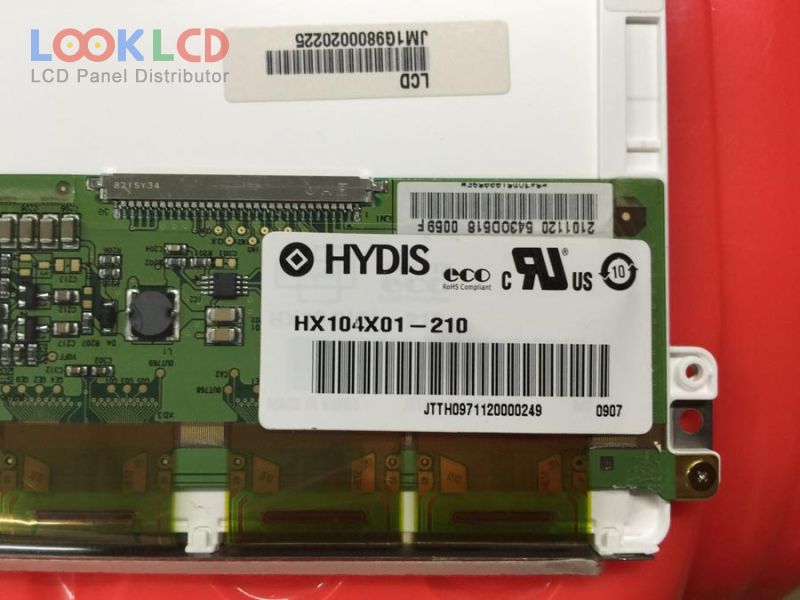

| Part Number | HX104X01-210 |
| Mark | HYDIS |
| Gréisst | 10.4 |
| Applikatioun | PAD |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | HYDIS |
| Panel Modell | HX104X01-210 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | AFFS+, Normally Black, Transmissive |
| aktiv Beräich | 210.4×157.8 mm |
| skizzéieren | 238.6×173.2×6.8 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193140% |
| Äntwert Zäit | 36 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 7S6PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
| AA104VC02 | Mitsubishi | 10.4 | 640×480 |
| BA104S01-200 | BOE | 10.4 | 800×600 |
| G104AGE-L02 | Innolux | 10.4 | 800×600 |
| HX104X01-210 | HYDIS | 10.4 | 1024×768 |
| HX104X01-212 | HYDIS | 10.4 | 1024×768 |
| HX104X02-100 | HYDIS | 10.4 | 1024×768 |
| LQ104V1DG5A | SHARP | 10.4 | 640×480 |
| NL10276AC20-03 | NLT | 10.4 | 1024×768 |
| NL6448BC33-20 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| B080XAN02.0 | AUO | 7.9 | 768×1024 |
| B101EAN01.4 | AUO | 10.1 | 1280×800 |
| CLAA070WP03XG | CPT | 7.0 | 800×1280 |
| HSD100PXN1-A00-C11 | HannStar | 10.0 | 1024×768 |
| HV070WS1-105 | HYDIS | 7.0 | 1024×600 |
| HV121WX5-111 | HYDIS | 12.1 | 1280×800 |
| LP097QX1-SPC3 | LG Display | 9.7 | 2048×1536 |
| LP101WX2-SLA1 | LG Display | 10.1 | 1280×800 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| YX101UWX002C | SEBO | 10.1 | 1280×800 |
