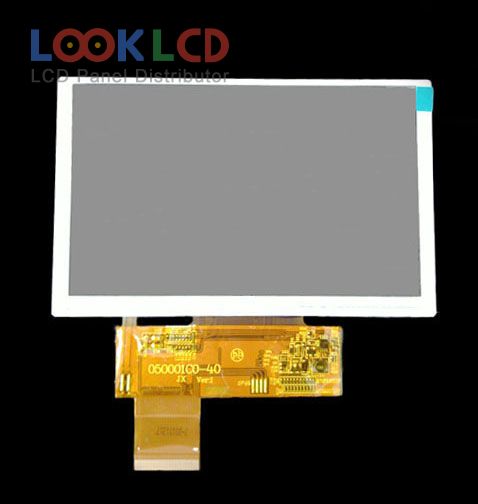

| Part Number | TY05001C0-40 V1 |
| Mark | Other |
| Gréisst | 5.0 |
| Applikatioun | |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | No Brand |
| Panel Modell | TY05001C0-40 V1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 108×64.8 mm |
| skizzéieren | 120.7×75.8 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | |
| Vue Wénkel | |
| Lampe Typ | 6S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Volt | 2.8/2.8V (Typ.)(VDD/VCI) |
