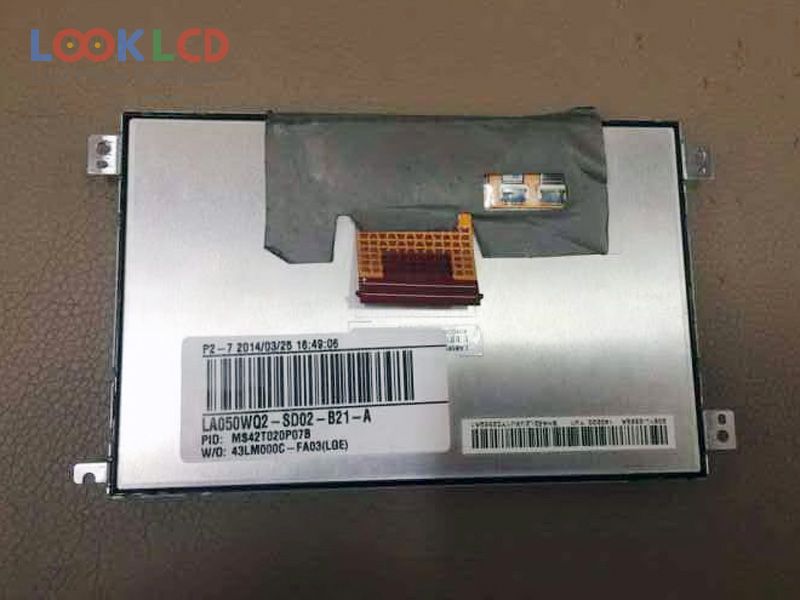

| Part Number | LA050WQ2-SD02 |
| Mark | LG Display |
| Gréisst | 5.0 |
| Applikatioun | CNS |
| Opléisung | 480×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 500 |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | LG Display |
| Panel Modell | LA050WQ2-SD02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.0 inch |
| Resolutioun | 480(RGB)×240 , WQVGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 108×64.8 mm |
| skizzéieren | 124.78×80×11.41 mm |
| Uewerfläch | |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Min.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI, 50 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | CNS |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C065GW03 V3 | AUO | 6.5 | 400×240 |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| L5F30614T64 | SANYO | 8.0 | 800×480 |
| LA080WV8-SL01 | LG Display | 8.0 | 800×480 |
| LB070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LQ064A5CG01 | SHARP | 6.4 | 480×234 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
| TX18D35VM0AAA | KOE | 7.0 | 800×480 |
