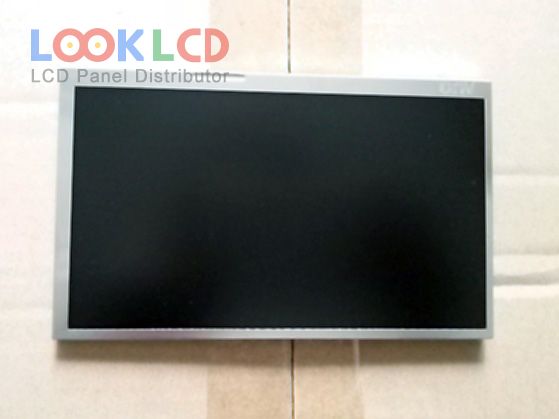

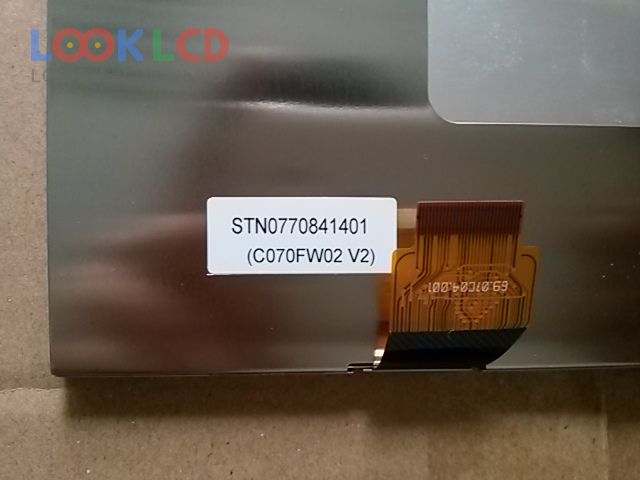

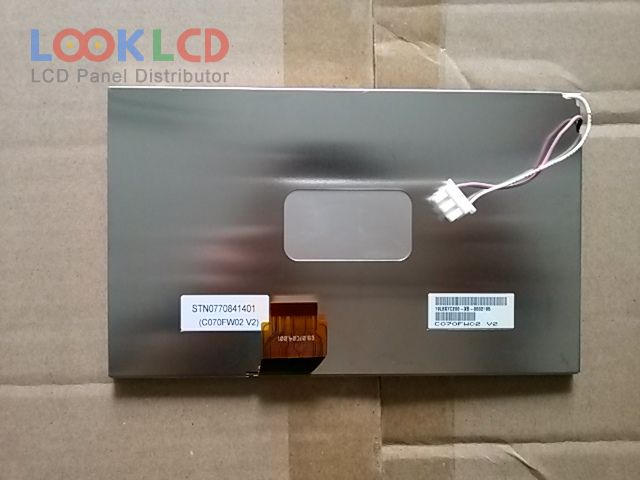

| Part Number | C070FW02 V2 |
| Mark | AUO |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 480×234 |
| Zesummesetzung | LCM |
| Hellegkeet | 410 |
| CR | 300:1 |
| Faarwen | |
| Géigeliicht | CCFL |
| Interface | Analog |
| Panel Mark | AUO |
| Panel Modell | C070FW02 V2 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 480(RGB)×234 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 154.08×86.58 mm |
| skizzéieren | 164.9×100 mm |
| Uewerfläch | Antiglare (Haze 25%) |
| Hellegkeet | 410 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | |
| Äntwert Zäit | 12/18 (Typ.)(Tr/Td) |
| Vue Wénkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | TFT Specific Analog RGB, 30 pins |
| Input Volt | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| Applikatioun | CNS |
| 70WVW2A | SII | 7.0 | 800×480 |
| AM-800480STMQW-W0 | AMPIRE | 7.0 | 800×480 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| C070FW01 V0 | AUO | 7.0 | 480×234 |
| C070FW02 V0 | AUO | 7.0 | 480×234 |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| LQ070Y3DG3A | SHARP | 7.0 | 800×480 |
| P070BAG-CM1 | Innolux | 7.0 | 1024×600 |
| PM070WX1 | E Ink | 7.0 | 800×480 |
| AV128HDM-NW0 | BOE | 12.8 | 1280×720 |
| C065GW02 V1 | AUO | 6.5 | 400×234 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| G080Y1-T01 | Innolux | 8.0 | 800×480 |
| LA060N01-SD01 | LG Display | 6.0 | 720×272 |
| LB040Q02-TD01 | LG Display | 4.0 | 320×240 |
| LQ070Y5DG36 | SHARP | 7.0 | 800×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
