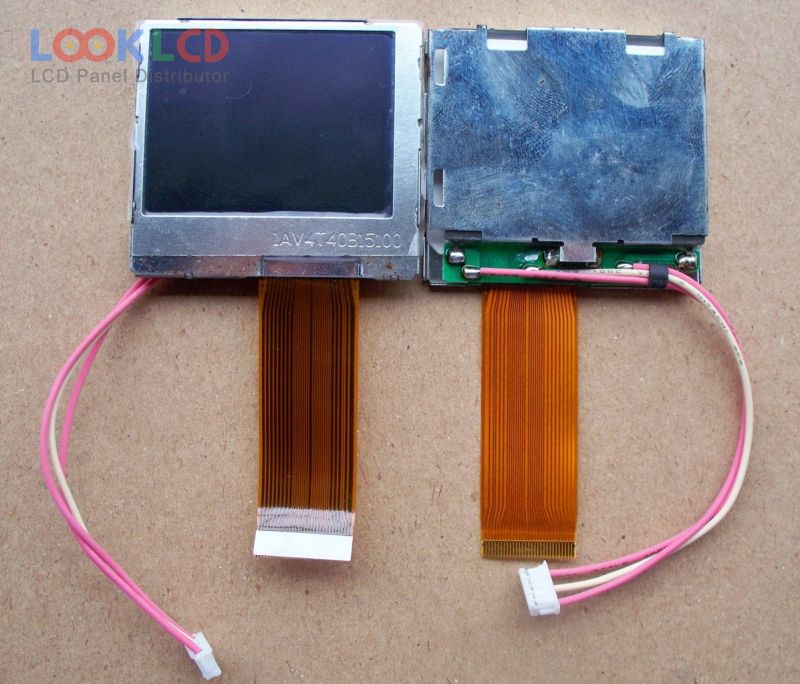

| Part Number | P18BD2 |
| Mark | E Ink |
| Gréisst | 1.8 |
| Applikatioun | |
| Opléisung | 480×234 |
| Zesummesetzung | LCM |
| Hellegkeet | 230 |
| CR | 160:1 |
| Faarwen | Full color |
| Géigeliicht | |
| Interface | Analog |
| Panel Mark | PVI |
| Panel Modell | P18BD2 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 1.8 inch |
| Resolutioun | 480×234 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 36.5×27.4 mm |
| skizzéieren | 51.8×45 mm |
| Uewerfläch | |
| Hellegkeet | 230 cd/m² (Typ.) |
| Kontrast Verhältnis | 160:1 (Typ.) |
| weisen Faarwen | Full color |
| Äntwert Zäit | |
| Vue Wénkel | 55/55/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | |
| Signal Interface | TFT Specific Analog RGB |
| C-51505NFQJ-LG-AKN | Kyocera | 3.0 | 20×2 |
| CLAA035JA01CW | CPT | 3.5 | 144×480 |
| LQ056A3AG01 | SHARP | 5.6 | 320×234 |
| LQ150X1LGN2 | SHARP | 15.0 | 1024×768 |
| LS013B4DN01 | SHARP | 1.35 | 96×96 |
| LTA065A040F | TOSHIBA | 6.5 | 640×480 |
| LTA070B070F | TOSHIBA | 7.0 | 800×480 |
| LTV350QV-F02 | Samsung | 3.5 | 320×240 |
| N080XCG-L21 | Innolux | 8.0 | 1024×768 |
| TD043MGEB1 | TPO | 4.3 | 800×480 |
