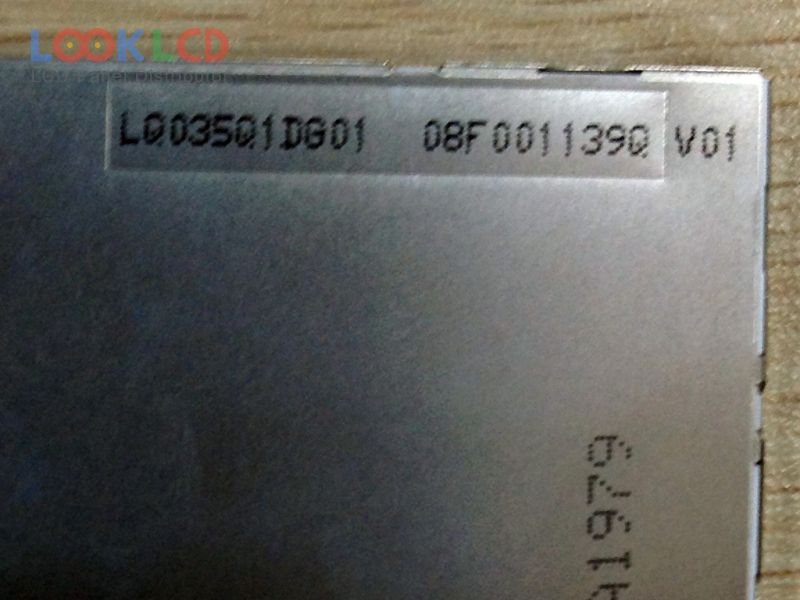

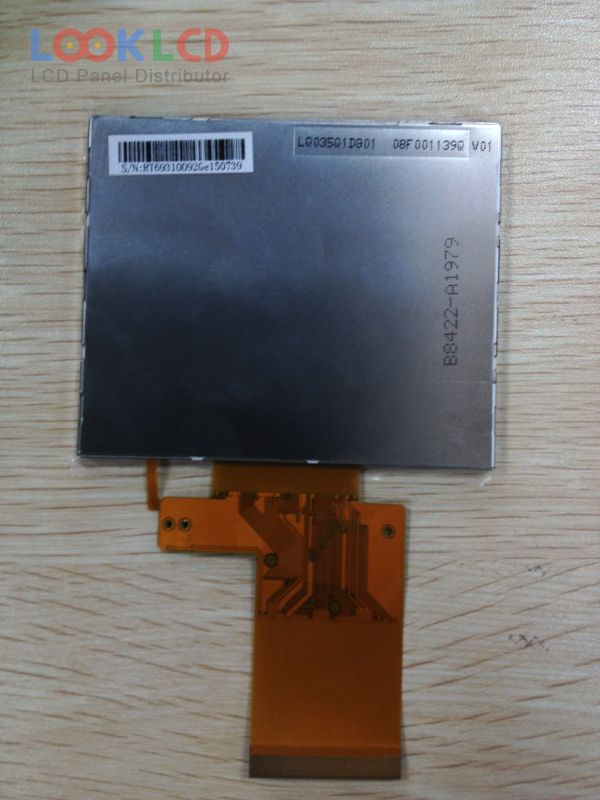

| Part Number | LQ035Q1DG01 |
| Mark | SHARP |
| Gréisst | 3.5 |
| Applikatioun | |
| Opléisung | 320×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 340 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ035Q1DG01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.5 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 70.56×52.92 mm |
| skizzéieren | 76.9×63.9×3.65 mm |
| Uewerfläch | |
| Hellegkeet | 340 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 30/30 (Typ.)(Tr/Td) |
| Vue Wénkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI, 54 pins |
| Input Volt | 3.3/3.3V (Typ.)(VDD/AVDD) |
