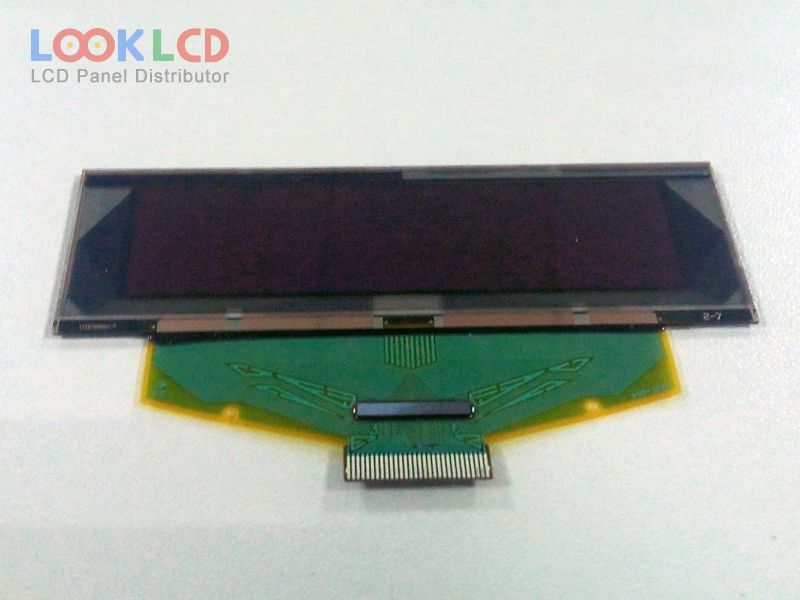

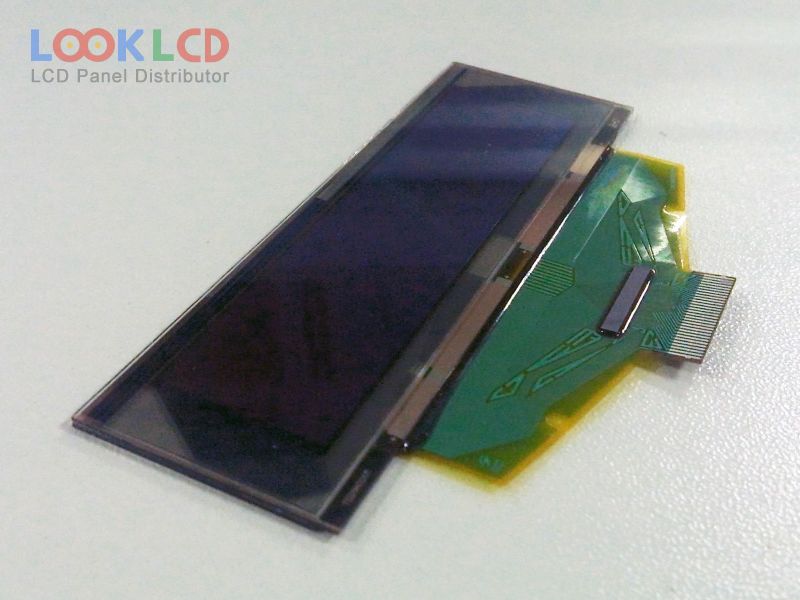

| Part Number | DLC0270CUOF |
| Mark | Other |
| Gréisst | 2.7 |
| Applikatioun | |
| Opléisung | 256×64 |
| Zesummesetzung | OLED |
| Hellegkeet | 100 |
| CR | 10000:1 |
| Faarwen | Mono(White) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Panel Mark | DLC |
| Panel Modell | DLC0270CUOF 1 Compatible model |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 2.7 inch |
| Resolutioun | 256×64 |
| aktiv Beräich | 66.53×16.61 mm |
| skizzéieren | 82×25.5×1.6 mm |
| Uewerfläch | |
| Hellegkeet | 100 cd/m² (Typ.) |
| Kontrast Verhältnis | 10000 : 1 (Min.) |
| weisen Faarwen | Mono(White) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 100Hz |

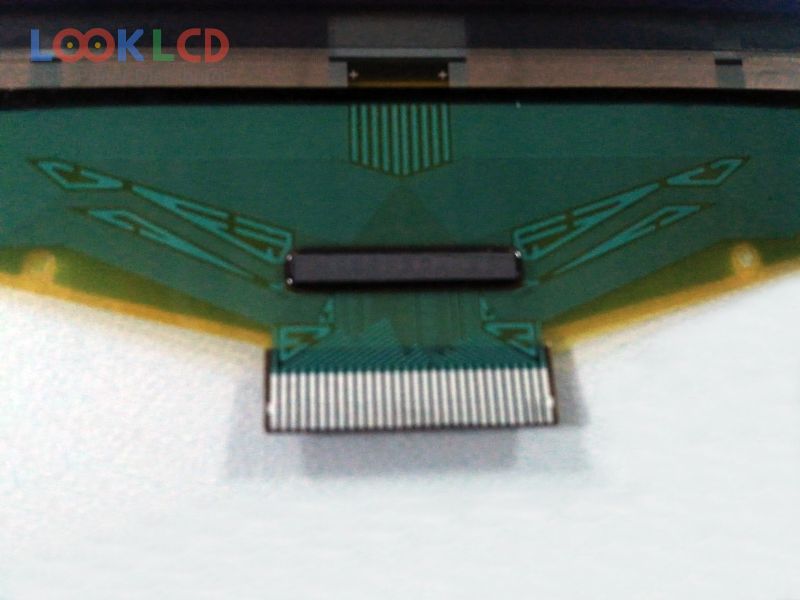

| Chauffeur ic | COF Built-in SSD1322UR1 |
| Signal Interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
