Other OEL9M0083-W-E Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

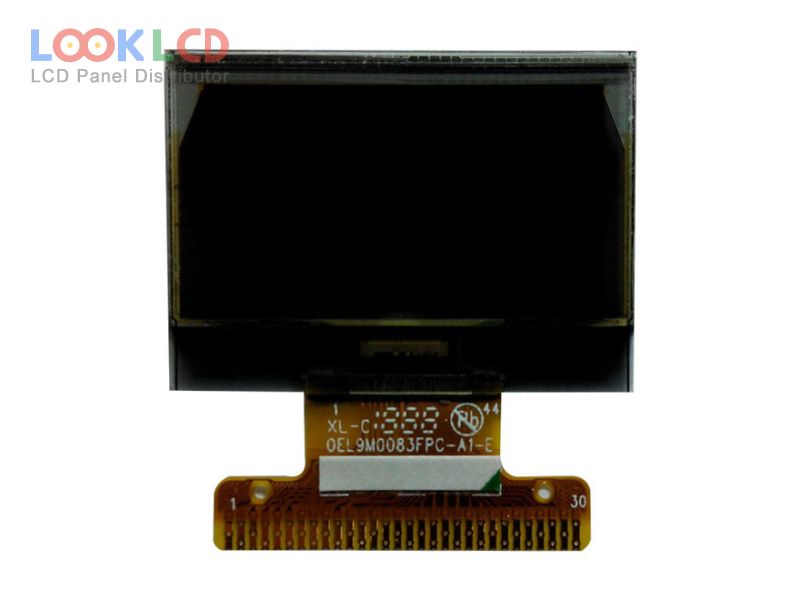

OEL9M0083-W-E

OEL9M0083-W-E
OEL9M0083-W-E thumb
Mark
Other
Gréisst
0.96
Applikatioun
Opléisung
128×64
Zesummesetzung
OLED
Hellegkeet
CR
10000:1
Faarwen
Mono(White)
Backlight
self
Interface
CPU/SPI/I²C
In Stock
3950
Spezifikatioune

Part Number OEL9M0083-W-E
MarkOther
Gréisst0.96
Applikatioun
Opléisung128×64
ZesummesetzungOLED
Hellegkeet
CR10000:1
FaarwenMono(White)
Géigeliichtself
InterfaceCPU/SPI/I²C
Panel MarkTRULY
Panel ModellOEL9M0083-W-E
Panel Typ PM-OLED , OLED
Panel Gréisst0.96 inch
Resolutioun128×64
aktiv Beräich21.74×11.175 mm
skizzéieren26.7×19.26×1.65 mm
Uewerfläch
Hellegkeet
Kontrast Verhältnis10000 : 1 (Min.)
weisen FaarwenMono(White) (1-bit)
Vue Wénkel80/80/80/80 (Min.)(L/R/U/D)
Frequenz100Hz
Chauffeur icCOG Built-in SH1106G
Signal Interface8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins
