Other OEL9M5003-W-E Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD


OEL9M5003-W-E

OEL9M5003-W-E

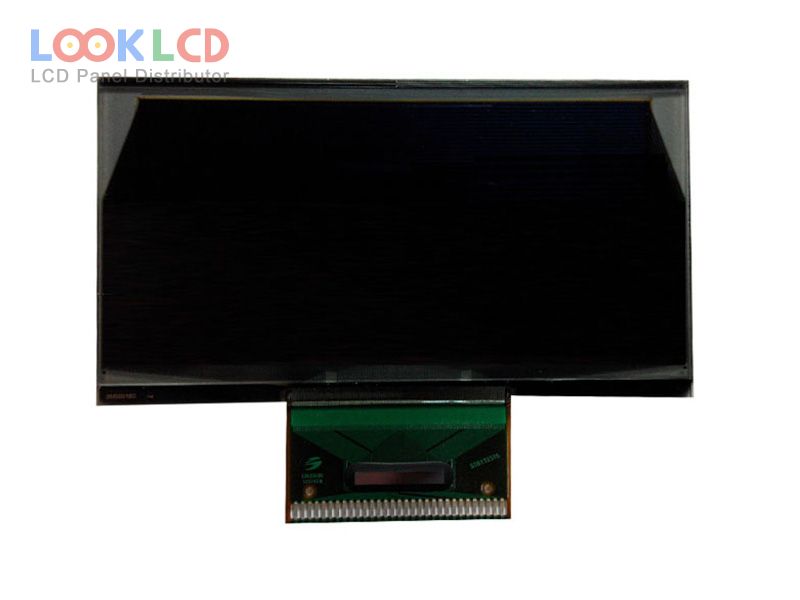

OEL9M5003-W-E thumb
Mark
Other
Gréisst
2.7
Applikatioun
Opléisung
128×64
Zesummesetzung
OLED
Hellegkeet
CR
10000:1
Faarwen
Mono(White)
Backlight
self
Interface
CPU/SPI
In Stock
9112
Spezifikatioune

Part Number OEL9M5003-W-E
MarkOther
Gréisst2.7
Applikatioun
Opléisung128×64
ZesummesetzungOLED
Hellegkeet
CR10000:1
FaarwenMono(White)
Géigeliichtself
InterfaceCPU/SPI
Panel MarkTRULY
Panel ModellOEL9M5003-W-E
Panel Typ PM-OLED , OLED
Panel Gréisst2.7 inch
Resolutioun128×64
aktiv Beräich61.41×30.69 mm
skizzéieren73×40.24×2.15 mm
Uewerfläch
Hellegkeet
Kontrast Verhältnis10000 : 1 (Min.)
weisen FaarwenMono(White) (1-bit)
Vue Wénkel80/80/80/80 (Min.)(L/R/U/D)
Frequenz100Hz
Chauffeur icTAB Built-in SSD1305T7R1
Signal Interface8-bit 6800/8080 parallel, SPI, 30 pins
Input Volt3.0/13.0V (Typ.)(VDD/VCC)
Famill Modell
OEL9M5001-B-E Other 2.7 128×64
OEL9M5001-G-E Other 2.7 128×64
OEL9M5001-R-E Other 2.7 128×64
OEL9M5001-W-E Other 2.7 128×64
OEL9M5001-Y-E Other 2.7 128×64
OEL9M5003-B-E Other 2.7 128×64
OEL9M5003-G-E Other 2.7 128×64
OEL9M5003-R-E Other 2.7 128×64
OEL9M5003-W-E Other 2.7 128×64
OEL9M5003-Y-E Other 2.7 128×64
