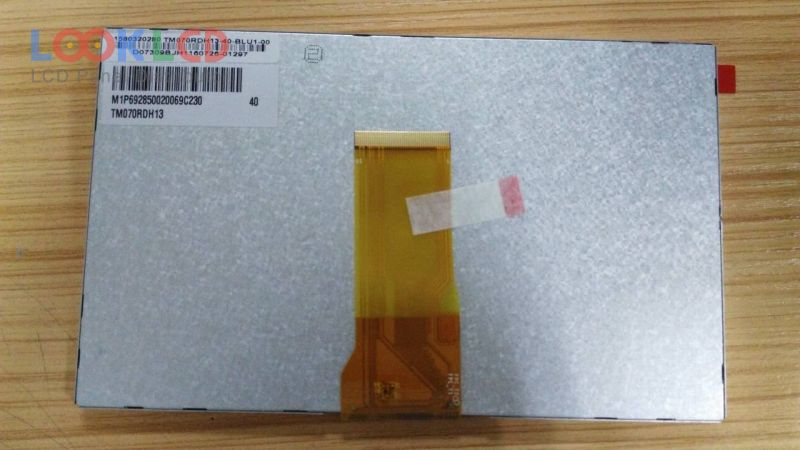

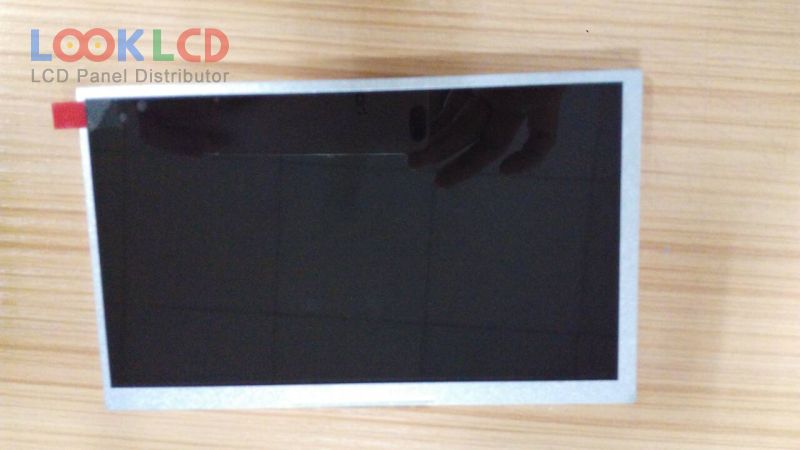

| Part Number | TM070RDH13 |
| Mark | Tianma |
| Gréisst | 7.0 |
| Applikatioun | DPF |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 800:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | TIANMA |
| Panel Modell | TM070RDH13 2 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 154.08×85.92 mm |
| skizzéieren | 164.9×100×6 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S6PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| Input Volt | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Applikatioun | DPF |
