| Part Number | TM070JDHP01-00 |
| Mark | Tianma |
| Gréisst | 7.0 |
| Applikatioun | UMPC |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 420 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | TIANMA |

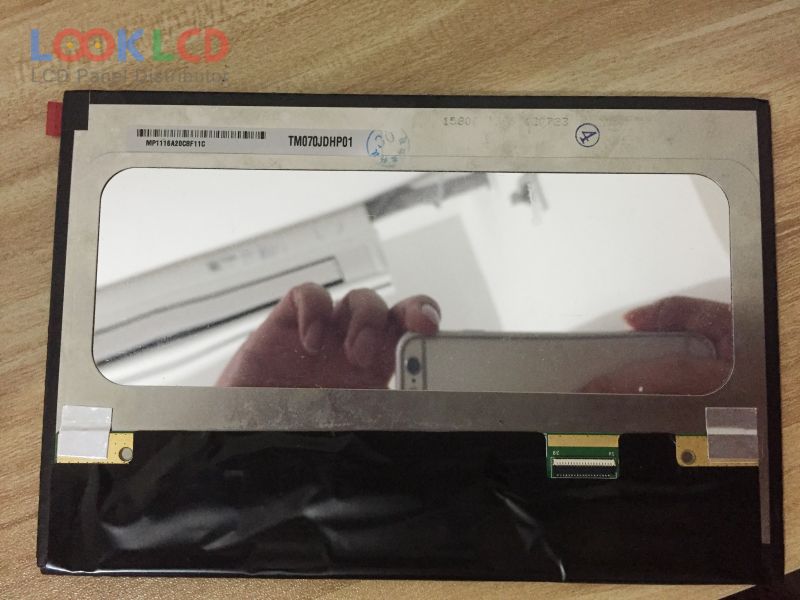

| Panel Modell | TM070JDHP01-00 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | SIP, Normally Black, Transmissive |
| aktiv Beräich | 149.76×93.6 mm |
| skizzéieren | 161×107×4.4 mm |
| Uewerfläch | Antireflection |
| Hellegkeet | 420 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193150% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 9S2PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit), 39 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | UMPC |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| FG0700G3DSSWBGL4 | Data Image | 7.0 | 800×480 |
| HJ070NA-01U | Innolux | 7.0 | 1024×600 |
| HV070WS1-1E1 | HYDIS | 7.0 | 1024×600 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| LTN070NL01-801 | Samsung | 7.0 | 1024×600 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| HSD070PWW1-C00 | HannStar | 7.0 | 1280×800 |
| HV056WX2-100 | HYDIS | 5.6 | 1280×800 |
| LB048WV1-TL01 | LG Display | 4.8 | 800×480 |
| LD070WS2-SL03 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL04 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL06 | LG Display | 7.0 | 1024×600 |
| LT080EE04100 | TOSHIBA | 8.0 | 1600×768 |
| LTD056ET0T | TOSHIBA | 5.6 | 1024×600 |
| LTD056EV7F00 | TOSHIBA | 5.6 | 1280×800 |
