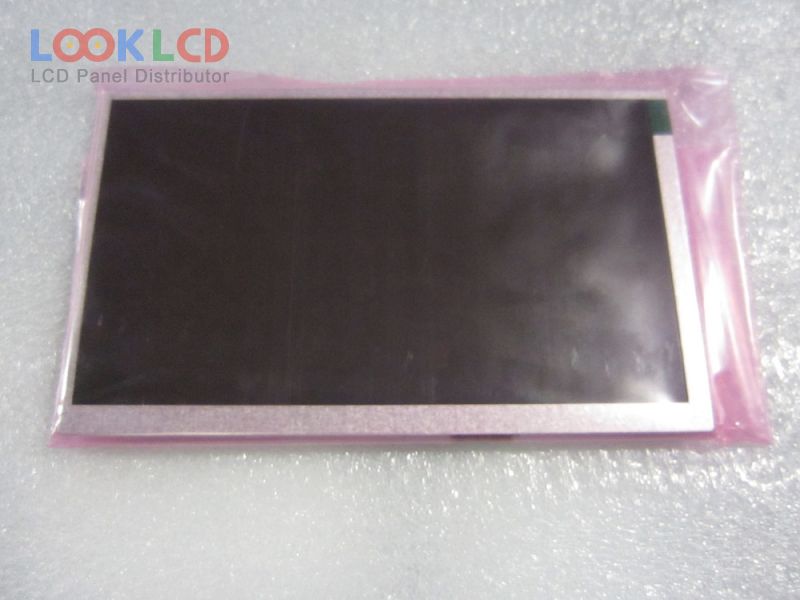

| Part Number | A070FW03 V3 |
| Mark | AUO |
| Gréisst | 7.0 |
| Applikatioun | VDP |
| Opléisung | 480×234 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 400:1 |
| Faarwen | |
| Géigeliicht | CCFL |
| Interface | Analog |
| Panel Mark | AUO |
| Panel Modell | A070FW03 V3 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 480(RGB)×234 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 154.08×86.58 mm |
| skizzéieren | 164.9×100 mm |
| Uewerfläch | Antiglare (Haze 5.5%) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | |
| Äntwert Zäit | 12/18 (Typ.)(Tr/Td) |
| Vue Wénkel | 55/55/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | TFT Specific Analog RGB, 26 pins |
| Input Volt | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Applikatioun | VDP |
