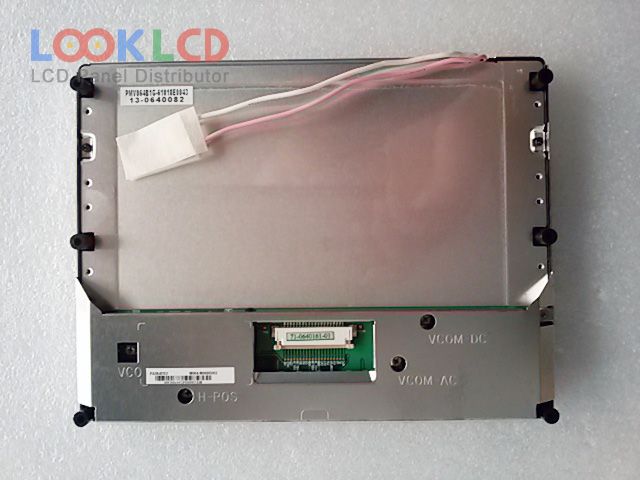

| Part Number | PA064DS1 |
| Mark | E Ink |
| Gréisst | 6.4 |
| Applikatioun | VDP |
| Opléisung | 320×234 |
| Zesummesetzung | LCM |
| Hellegkeet | 330 |
| CR | 350:1 |
| Faarwen | |
| Géigeliicht | CCFL |
| Interface | Analog |
| Panel Mark | PVI |
| Panel Modell | PA064DS1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 6.4 inch |
| Resolutioun | 320(RGB)×234 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 129.6×97.3 mm |
| skizzéieren | 156.3×119.8×14.7 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 330 cd/m² (Typ.) |
| Kontrast Verhältnis | 350:1 (Typ.) |
| weisen Faarwen | |
| Äntwert Zäit | 15/25 (Typ.)(Tr/Td) |
| Vue Wénkel | 60/60/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | Analog RGB + Composite Video (NTSC/PAL), 20 pins |
| Input Volt | 5.0/5.0/17.0/-15.0V (Typ.)(VCC/VDD/VGH/VGL) |
| Applikatioun | VDP |
