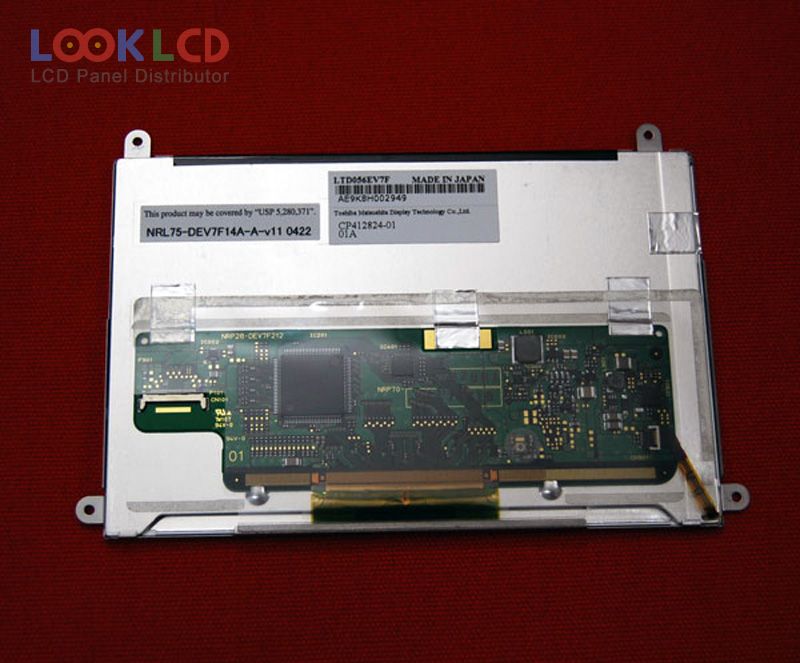

| Part Number | LTD056EV7F00 |
| Mark | TOSHIBA |
| Gréisst | 5.6 |
| Applikatioun | UMPC |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | Toshiba Mobile Display |
| Panel Modell | LTD056EV7F00 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.6 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | Transmissive |
| aktiv Beräich | 120.96×75.6 mm |
| skizzéieren | 147.5×96.05×5 mm |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 70 (Max.)(Tr+Td) |
| Vue Wénkel | |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 25 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | UMPC |
