| Part Number | LB084S02-TD01 |
| Mark | LG Display |
| Gréisst | 8.4 |
| Applikatioun | DPF |
| Opléisung | 800×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | LG.Philips LCD |

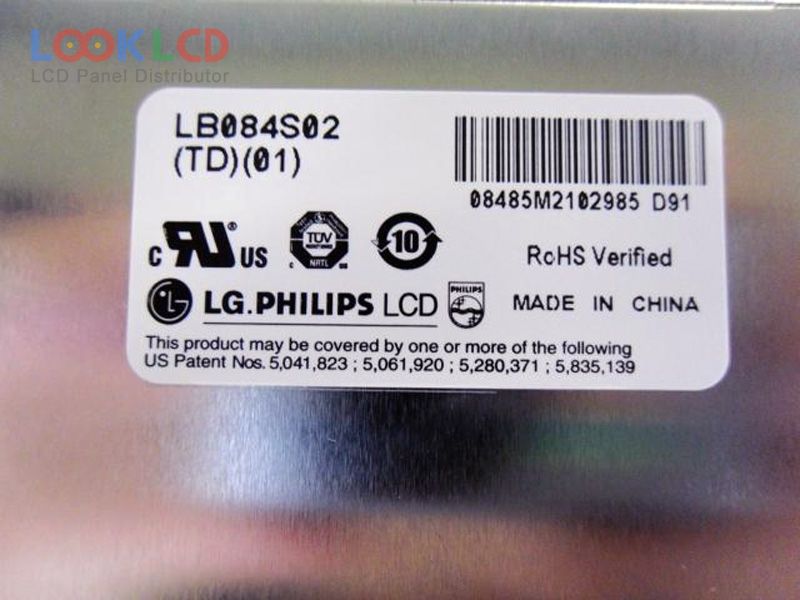

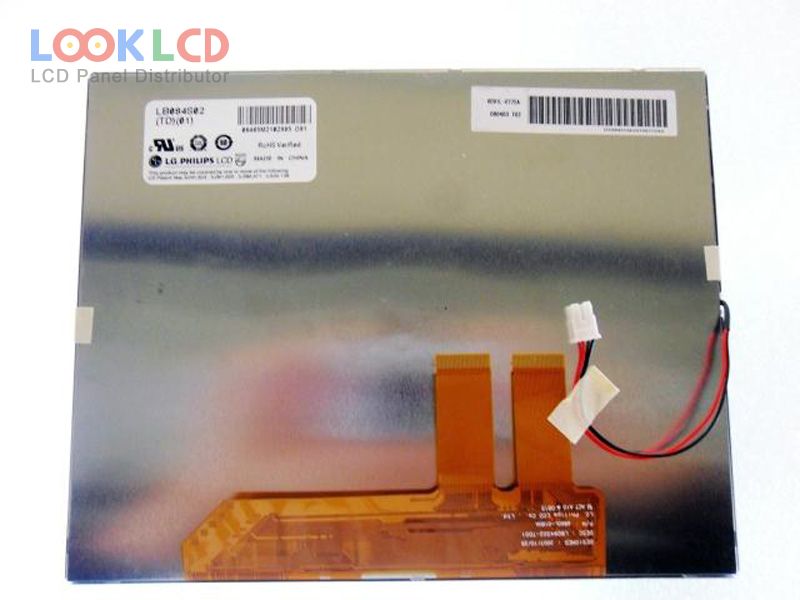

| Panel Modell | LB084S02-TD01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.4 inch |
| Resolutioun | 800(RGB)×600 , SVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 170.4×127.8 mm |
| skizzéieren | 189.8×149.4 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193146% |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 65/65/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S9PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| Input Volt | 3.3/10/19.5/-4.5/4.12V (Typ.)(VCC/AVDD/VGH/VGL/VCOM) |
| Applikatioun | DPF |
