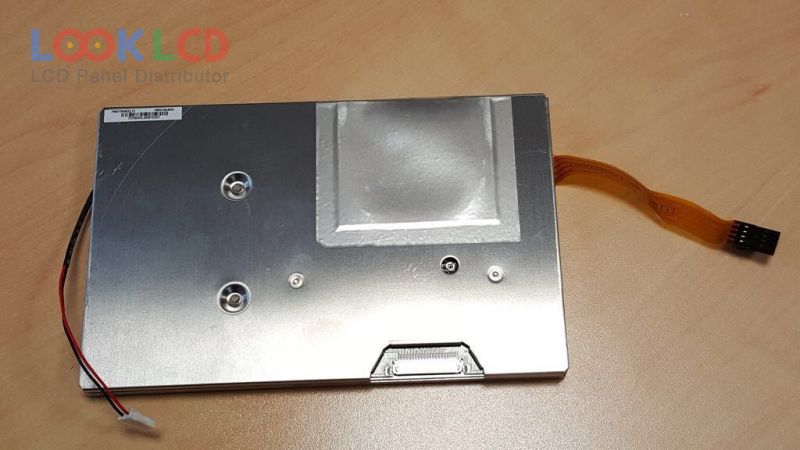

| Part Number | PM070WM3 |
| Mark | E Ink |
| Gréisst | 7.0 |
| Applikatioun | DPF |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 330 |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | PVI |
| Panel Modell | PM070WM3 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 166.3×105.3×11.8 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 330 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 5/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 3S11PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| rohs: | |
| Applikatioun | DPF |
