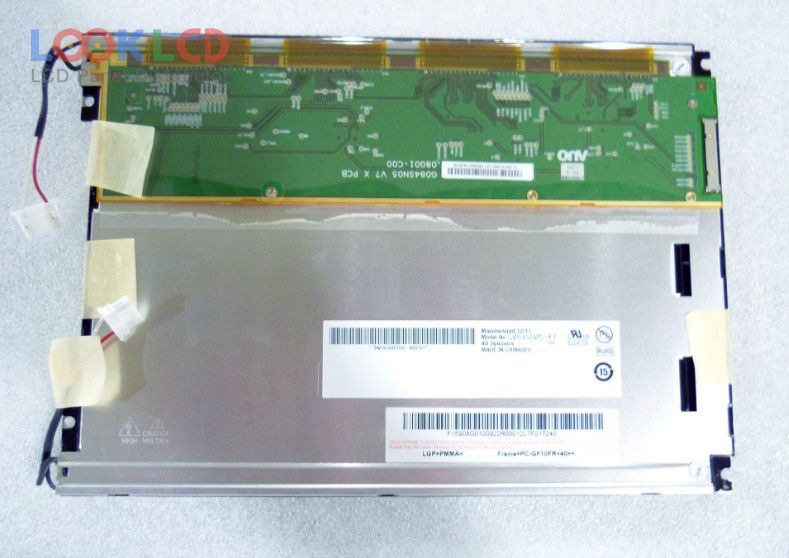

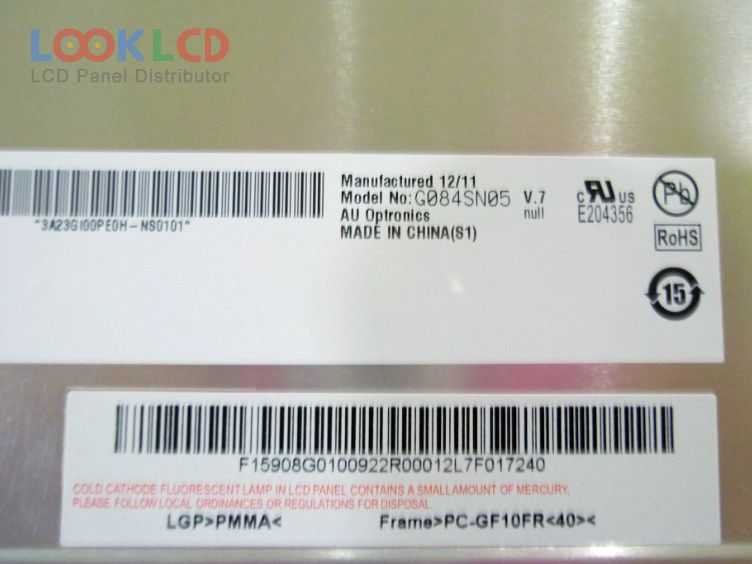

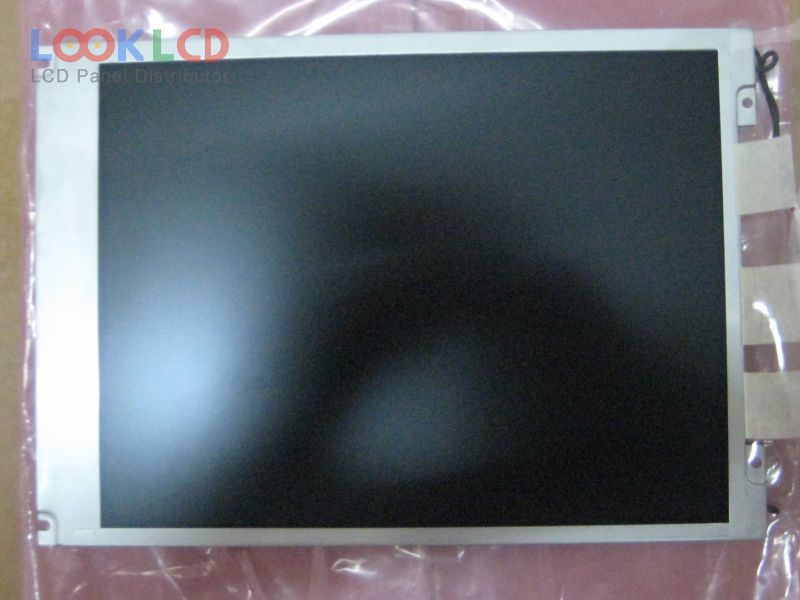

| Part Number | G084SN05 V7 |
| Mark | AUO |
| Gréisst | 8.4 |
| Applikatioun | IA |
| Opléisung | 800×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 600:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | G084SN05 V7 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.4 inch |
| Resolutioun | 800(RGB)×600 , SVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 170.4×127.8 mm |
| skizzéieren | 203×142.5×8.3 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K/16.2M (6-bit / 6-bit + FRC), CIE193145% |
| Äntwert Zäit | 20/10 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
