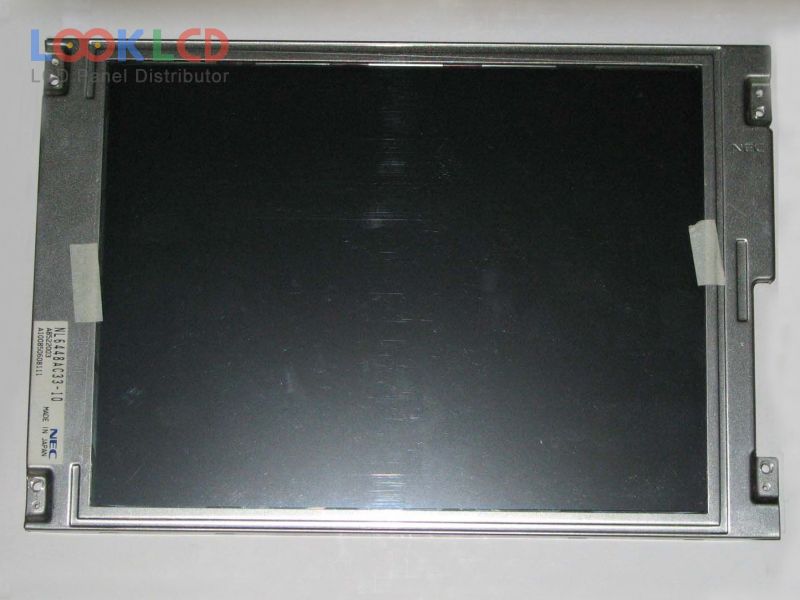

| Part Number | NL6448AC33-10 |
| Mark | NLT |
| Gréisst | 10.4 |
| Applikatioun | NBPC |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 90 |
| CR | 150:1 |
| Faarwen | 4096 |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | NEC |
| Panel Modell | NL6448AC33-10 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 211.2×158.4 mm |
| skizzéieren | 270×183×13 mm |
| Uewerfläch | |
| Hellegkeet | 90 cd/m² (Typ.) |
| Kontrast Verhältnis | 150:1 (Typ.) |
| weisen Faarwen | 4096 (4-bit), CIE193155% |
| Äntwert Zäit | 40 (Max.)(Tr) |
| Vue Wénkel | 45/45/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLEmbedded (Inverter) |
| Signal Interface | CMOS (1 ch, 4-bit), 34 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | NBPC |
