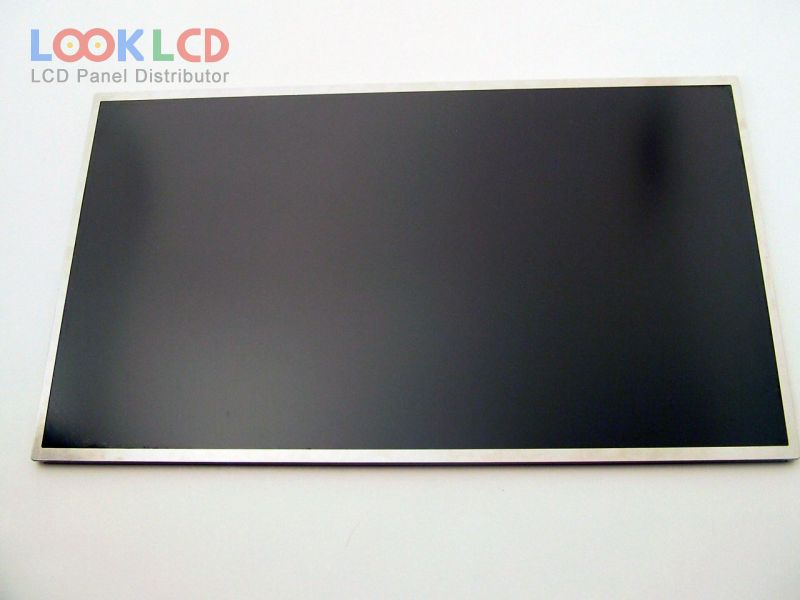

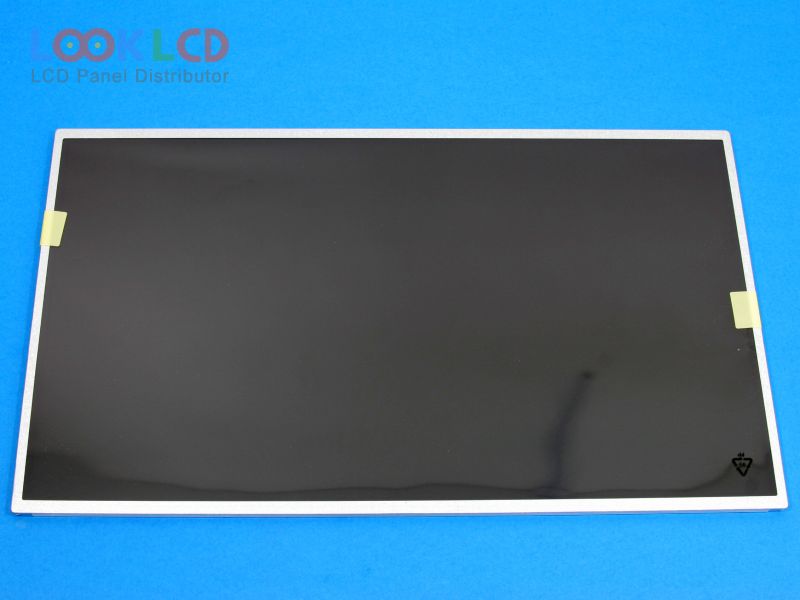

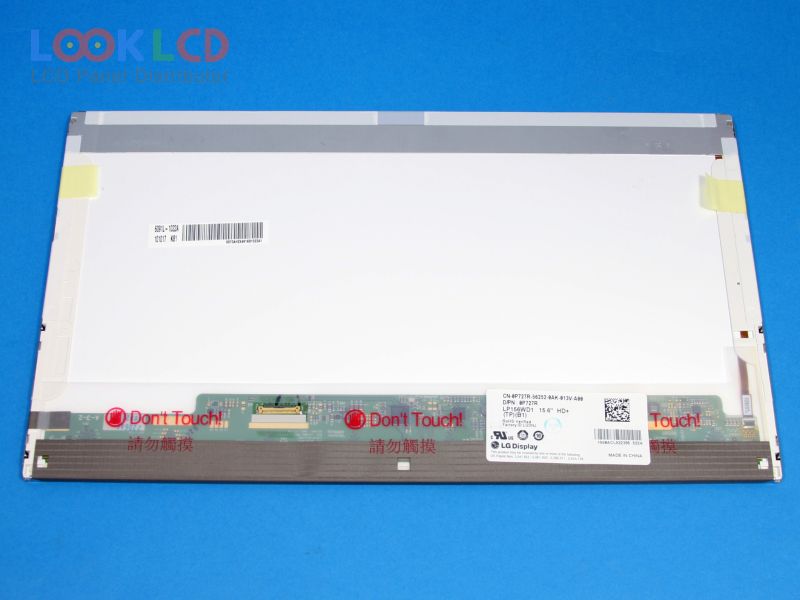

| Part Number | LP156WD1-TPB1 |
| Mark | LG Display |
| Gréisst | 15.6 |
| Applikatioun | NBPC |
| Opléisung | 1600×900 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | LG Display |
| Panel Modell | LP156WD1-TPB1 2 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.6 inch |
| Resolutioun | 1600(RGB)×900 , HD+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 344.16×193.59 mm |
| skizzéieren | 359.3×209.5×5.7 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Min.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 8 (Typ.)(Tr+Td) |
| Vue Wénkel | 60/60/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (1 Lane), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| LP156WD1-TLB2 | LG Display | 15.6 | 1600×900 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN2 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TPA1 | LG Display | 15.6 | 1366×768 |
| HB140FH1-401 | BOE | 14.0 | 1920×1080 |
| LP156WD1-TLD3 | LG Display | 15.6 | 1600×900 |
| LTM10C353 | TOSHIBA | 10.0 | 1280×600 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT11-A01 | Samsung | 15.6 | 1366×768 |
| LTN173HT02-X01 | Samsung | 17.3 | 1920×1080 |
| N156B6-L3D | Innolux | 15.6 | 1366×768 |
| N156BGE-E11 | Innolux | 15.6 | 1366×768 |
| N156BGE-L41 | Innolux | 15.6 | 1366×768 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
