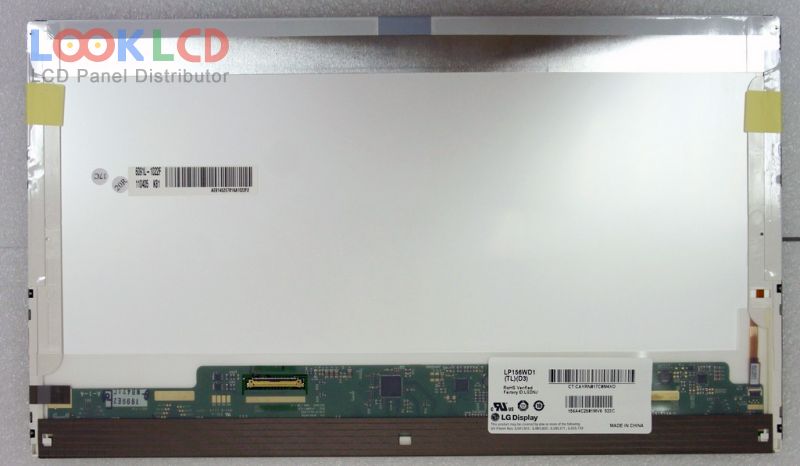

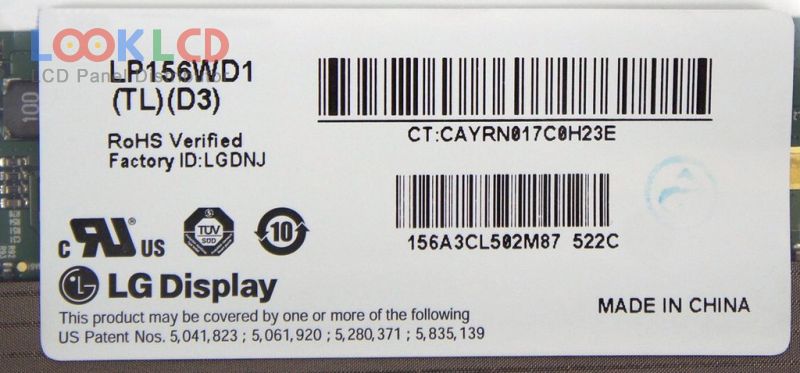

LP156WD1-TLD3

LP156WD1-TLD3
LP156WD1-TLD3
LP156WD1-TLD3 thumb LP156WD1-TLD3 thumb
Mark
LG Display
Gréisst
15.6
Applikatioun
NBPC
Opléisung
1600×900
Zesummesetzung
LCM
Hellegkeet
200
CR
300:1
Faarwen
262K
Backlight
WLED
Interface
LVDS
In Stock
100
Spezifikatioune

Part Number LP156WD1-TLD3
MarkLG Display
Gréisst15.6
ApplikatiounNBPC
Opléisung1600×900
ZesummesetzungLCM
Hellegkeet200
CR300:1
Faarwen262K
GéigeliichtWLED
InterfaceLVDS
Panel MarkLG Display
Panel ModellLP156WD1-TLD3 10 Compatible model
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst15.6 inch
Resolutioun1600(RGB)×900 , HD+
Display ModusTN, Normally White, Transmissive
aktiv Beräich344.16×193.59 mm
skizzéieren359.3×209.5×5.7 mm
Form StilWedge (PCBA Bent, Depth ≥5.2mm)
UewerflächAntiglare, Hard coating (3H)
Hellegkeet200 cd/m² (Typ.)
Kontrast Verhältnis300:1 (Min.)
weisen Faarwen262K (6-bit), CIE193160%
Äntwert Zäit8 (Typ.)(Tr+Td)
Vue Wénkel60/60/50/50 (Min.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe TypWLEDEmbedded (LED Driver)
Signal InterfaceLVDS (2 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounNBPC
