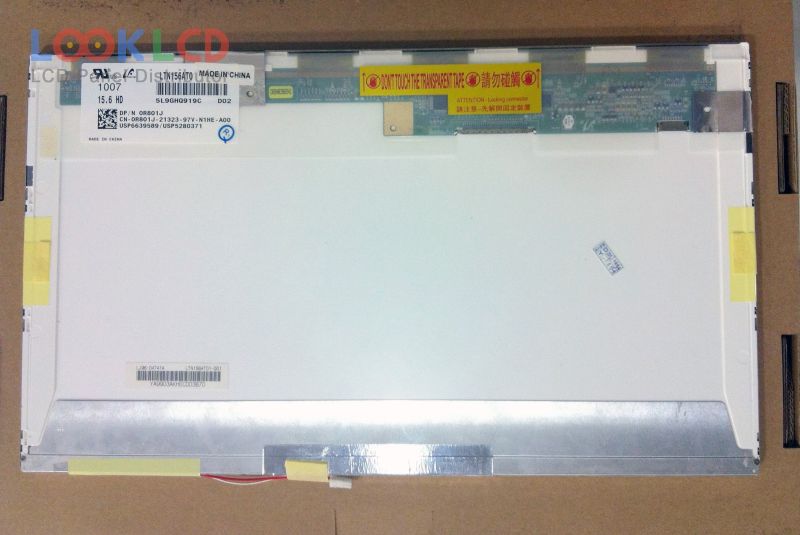

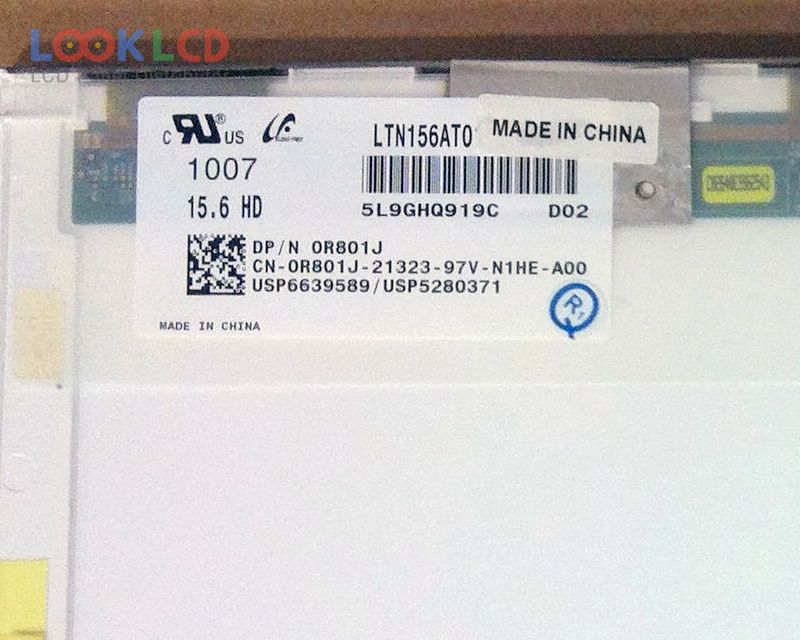

| Part Number | LTN156AT01-D02 |
| Mark | Samsung |
| Gréisst | 15.6 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 220 |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTN156AT01-D02 10 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.6 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 344.232×193.536 mm |
| skizzéieren | 359.3×209.5×6.2 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
