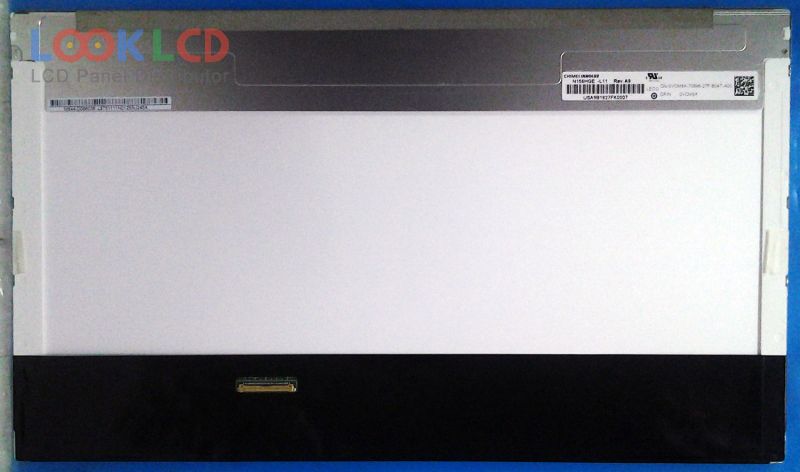

| Part Number | N156HGE-L11 |
| Mark | Innolux |
| Gréisst | 15.6 |
| Applikatioun | NBPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |

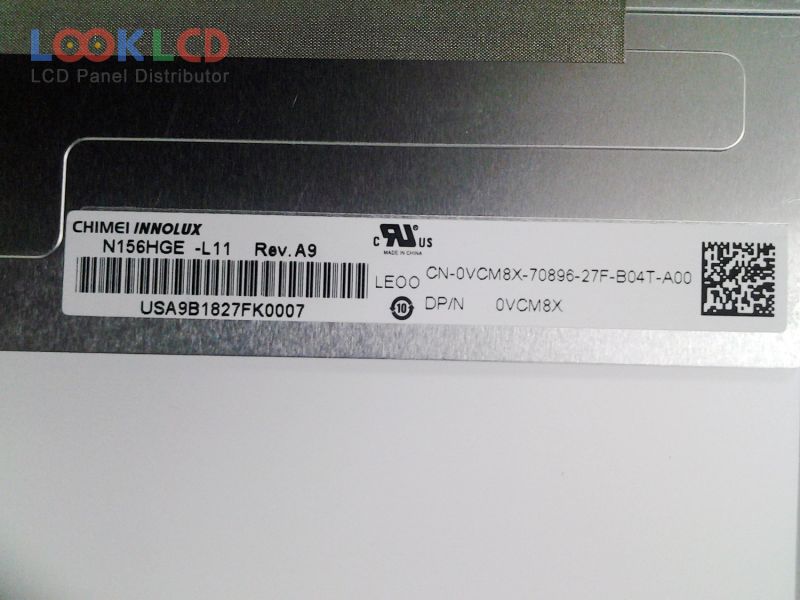

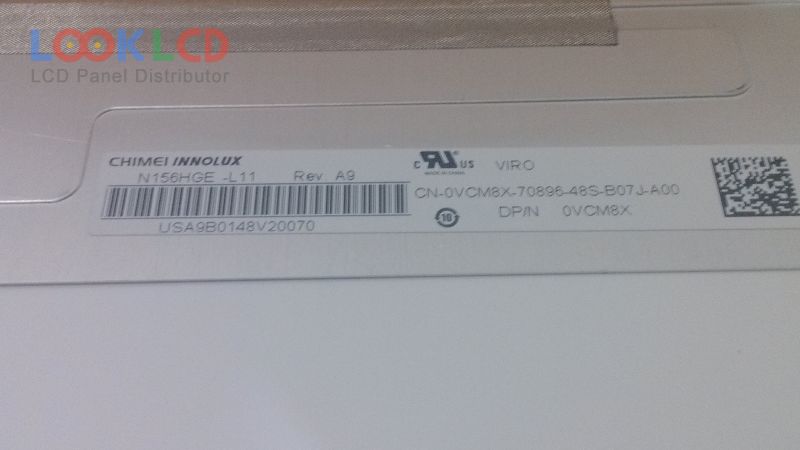

| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | N156HGE-L11 20 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.6 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 344.16×193.59 mm |
| skizzéieren | 359.3×209.5×5.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 3/8 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6 stringsWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| LP156WF7-SPB2 | LG Display | 15.6 | 1920×1080 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| LP125WF1-SPA2 | LG Display | 12.5 | 1920×1080 |
| LP125WF1-SPD1 | LG Display | 12.5 | 1920×1080 |
| LP156WF6-SPH3 | LG Display | 15.6 | 1920×1080 |
| LTD121EDFN | TOSHIBA | 12.1 | 1024×768 |
| LTN150U2-L02 | Samsung | 15.0 | 1600×1200 |
| LTN154U1-L02 | Samsung | 15.4 | 1920×1200 |
| LTN184KT02-T01 | Samsung | 18.4 | 1680×945 |
| N133B6-L01 | Innolux | 13.3 | 1366×768 |
| NL8060BC31-13A | NLT | 12.1 | 800×600 |
