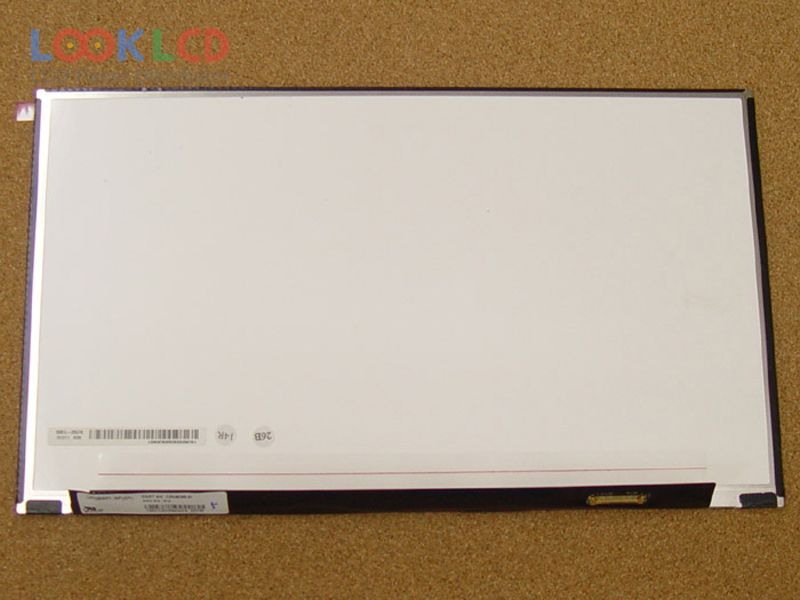

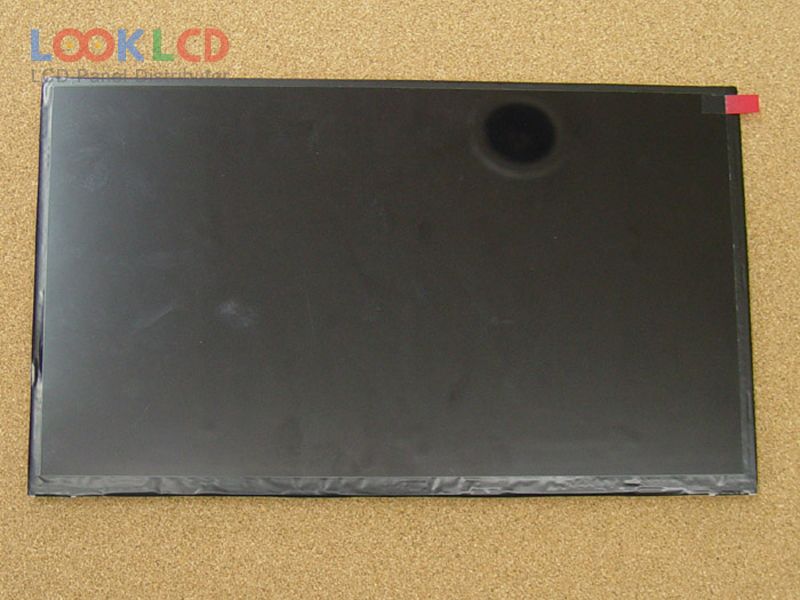

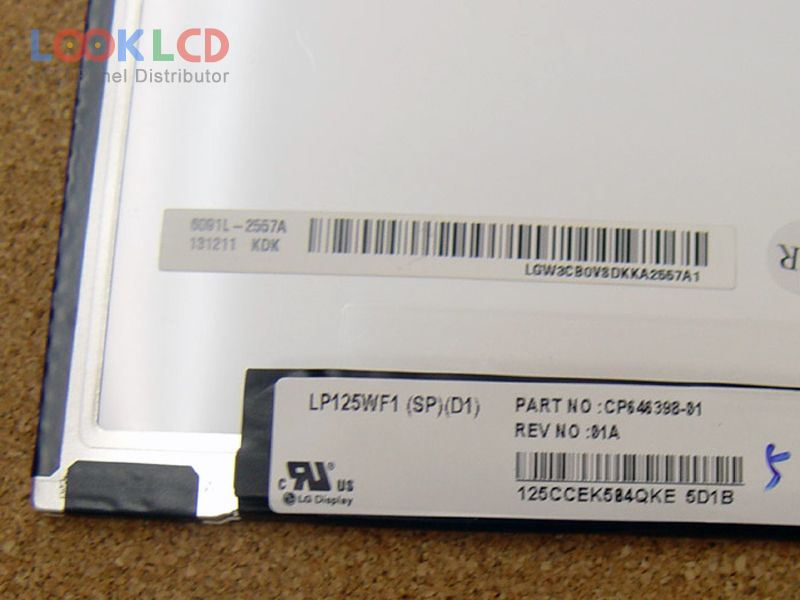

| Part Number | LP125WF1-SPD1 |
| Mark | LG Display |
| Gréisst | 12.5 |
| Applikatioun | NBPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 700:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | LG Display |
| Panel Modell | LP125WF1-SPD1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.5 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 276.48×155.52 mm |
| skizzéieren | 290.5×170.7×5.2 mm |
| Form Stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Uewerfläch | Antiglare |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
