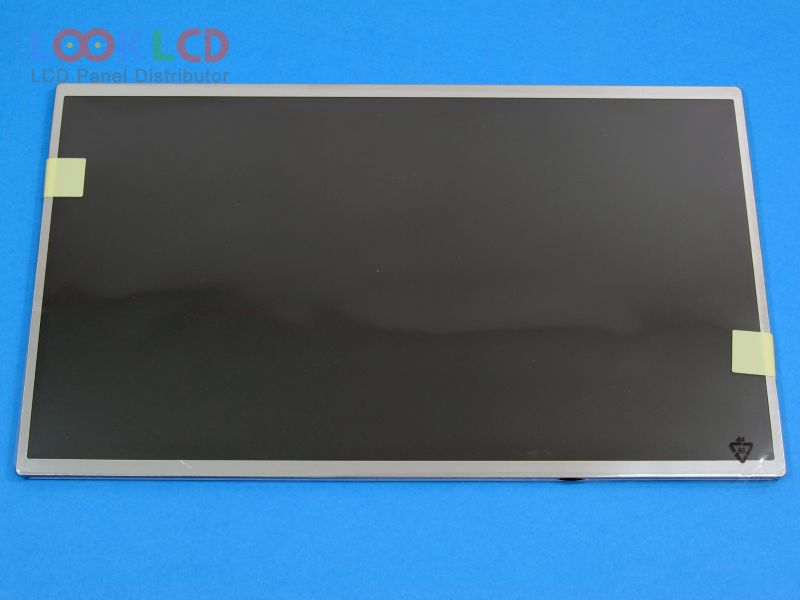

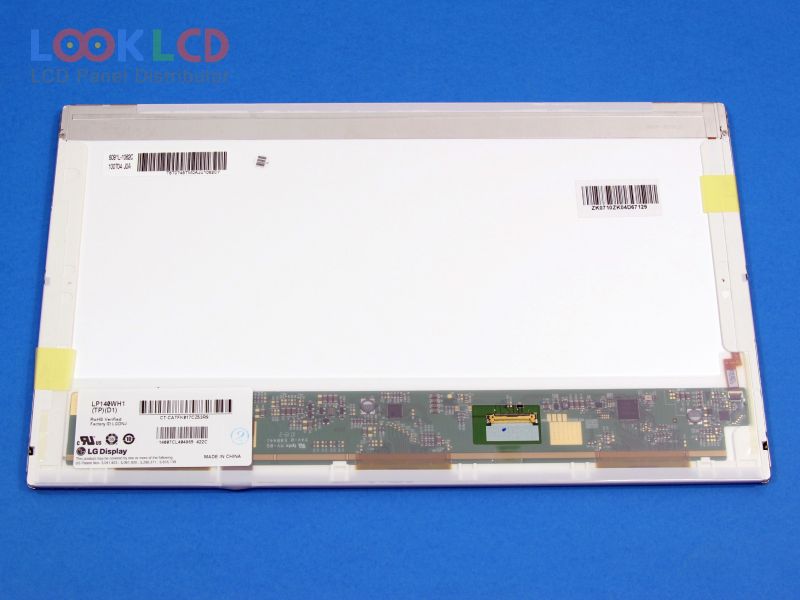

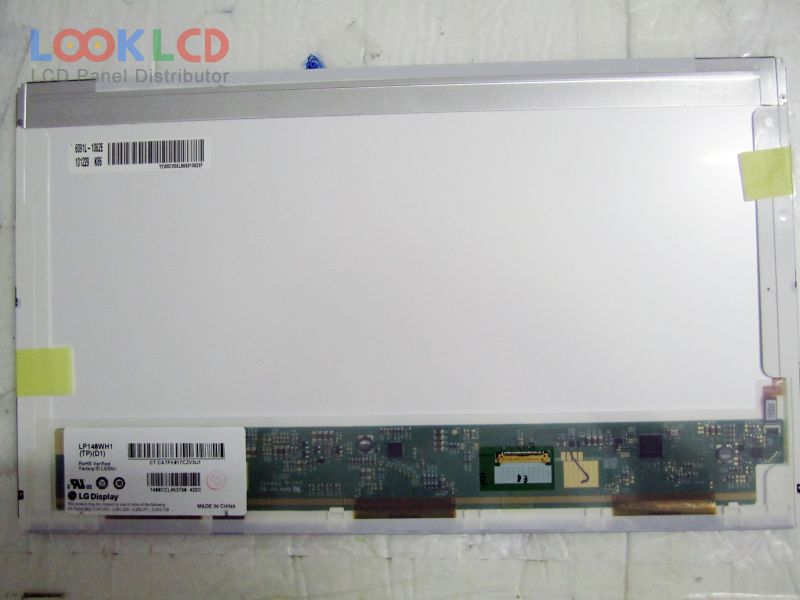

| Part Number | LP140WH1-TPD1 |
| Mark | LG Display |
| Gréisst | 14.0 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | LG Display |
| Panel Modell | LP140WH1-TPD1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.0 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 309.399×173.952 mm |
| skizzéieren | 323.5×192×5.2 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Min.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (1 Lane), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
