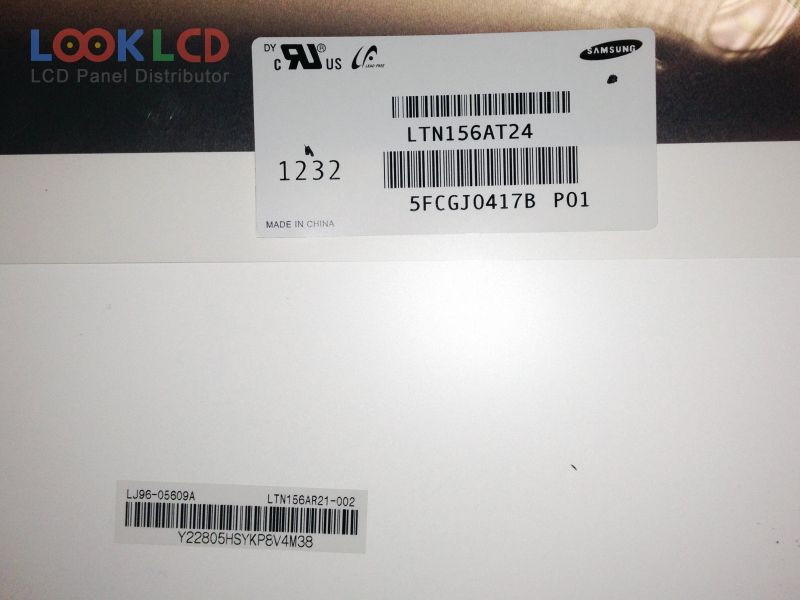

| Part Number | LTN156AT24-P01 |
| Mark | Samsung |
| Gréisst | 15.6 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 220 |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTN156AT24-P01 16 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.6 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 344.232×193.536 mm |
| skizzéieren | 359.3×209.5×5.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4S1PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-H01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D04 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-H07 | Samsung | 15.6 | 1366×768 |
| LTN156AT19-001 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT30-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT32-401 | Samsung | 15.6 | 1366×768 |
| LTN156AT36-W01 | Samsung | 15.6 | 1366×768 |
| B156HW01 V0 | AUO | 15.6 | 1920×1080 |
| LP125WF2-SPB1 | LG Display | 12.5 | 1920×1080 |
| LP133X7-F2IB | LG Display | 13.3 | 1024×768 |
| LP154W02-TL10 | LG Display | 15.4 | 1680×1050 |
| LTN141AT09-201 | Samsung | 14.1 | 1280×800 |
| LTN156KT01-W01 | Samsung | 15.6 | 1600×900 |
| LTN160HT02-001 | Samsung | 16.0 | 1920×1080 |
| LTN173HT02-D02 | Samsung | 17.3 | 1920×1080 |
| N140BGE-L11 | Innolux | 14.0 | 1366×768 |
| N154Z1-L02 | Innolux | 15.4 | 1680×1050 |
